astra-mongoose

astra-mongoose is a Mongoose driver for Data API. It supports connecting to DataStax Astra as well as self-hosted Data API on top of Apache Cassandra / DataStax Enterprise.

1. Quickstart
2. Architecture
3. Version compatibility
4. Sample Applications
5. Connecting to DSE/HCD
6. Features Using Collections
7. Features Using Tables
8. API Reference
9. Developer Guide

Quickstart

Prerequisites: Node.js (>=20.0.0), npm/yarn

• Create a sample project called 'sample-app'

mkdir sample-app
cd sample-app

• Initialize and add required dependencies

npm init -y && npm install express mongoose astra-mongoose

OR

yarn init -y && yarn add express mongoose astra-mongoose

• Set up an Astra database using the instructions here. Save your ASTRA_API_ENDPOINT and ASTRA_APPLICATION_TOKEN.
• Create a file called index.js under the 'sample-app' directory and copy below code into the file.

// Imports
const express = require('express');
const mongoose = require('mongoose');
const { driver, createAstraUri } = require('@datastax/astra-mongoose');
const Schema = mongoose.Schema;

// Override the default Mongoose driver
mongoose.setDriver(driver);

// Create a connection string for Astra
const uri = createAstraUri(
  process.env.ASTRA_API_ENDPOINT,
  process.env.ASTRA_APPLICATION_TOKEN
);

// Set up mongoose
mongoose.connect(uri);
const Product = mongoose.model('Product', new Schema({ name: String, price: Number }));
Object.values(mongoose.connection.models).map(Model => Model.init());

// Set up Express app with endpoints
const app = express();
app.get('/addproduct', (req, res) => {
    const newProduct = new Product(
        {
            name: 'product' + Math.floor(Math.random() * 99 + 1),
            price: '' + Math.floor(Math.random() * 900 + 100)
        });
    newProduct.save();
    res.send('Added a product!');
});
app.get('/getproducts', (req, res) => {
    Product.find()
        .then(products => res.json(products));
});

//Start server
const HOST = '0.0.0.0';
const PORT = 8097;
app.listen(PORT, HOST, () => {
    console.log(`Running on http://${HOST}:${PORT}`);
    console.log('http://localhost:' + PORT + '/addproduct');
    console.log('http://localhost:' + PORT + '/getproducts');
});

• Execute below to run the app

node index.js

• Create a product

curl http://localhost:8097/addproduct

• View the newly created product

curl http://localhost:8097/getproducts

Architecture

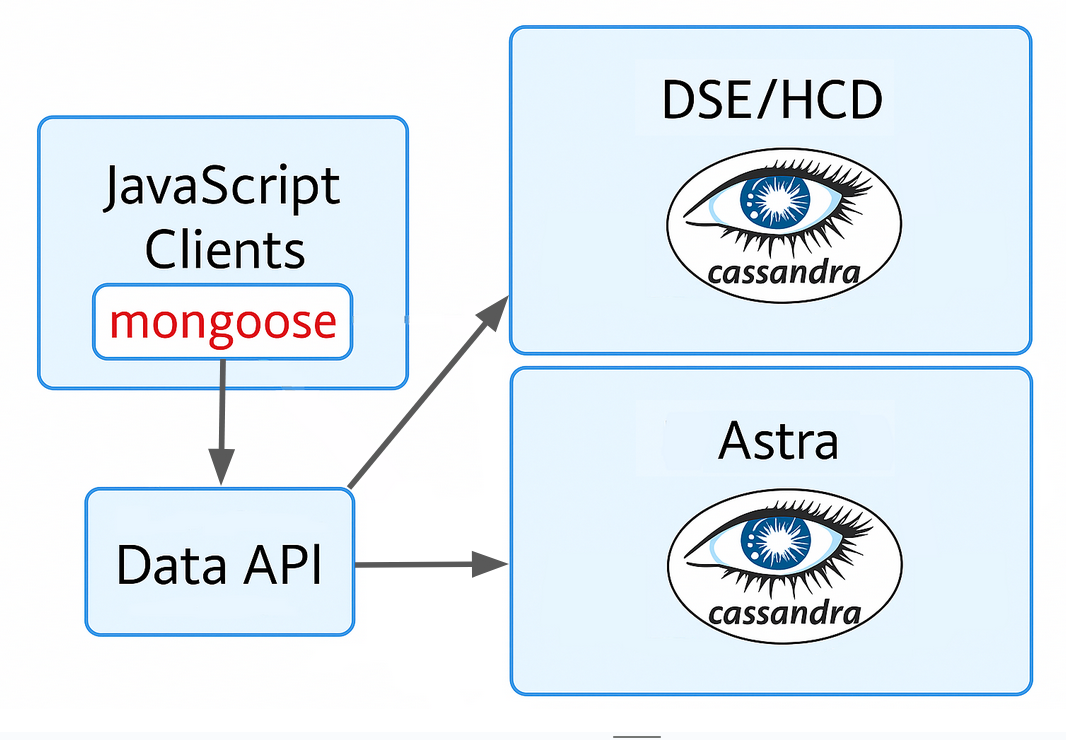

High level architecture

Components

• Cassandra Cluster - Apache Cassandra / DataStax Enterprise Cluster as backend database.
• Data API - Data API is an open source HTTP API that allows interacting with Apache Cassandra/DSE Cluster.
• JavaScript Clients that use Mongoose - Mongoose is an elegant MongoDB object modeling library for Node.js applications. By implementing a driver required by the Mongoose interface to connect to Data API instead of native MongoDB access layer, now a JavaScript client can store/retrieve documents on an Apache Cassandra/DSE Cluster.
• Astra - Astra is a managed DBaaS service that provides a fully managed Cassandra database service. Astra includes a managed Data API service that allows interacting with data stored in Astra.
• Stargate - Stargate is an open source project that provides a RESTful API for interacting with Apache Cassandra/DSE Cluster. Data API currently relies on Stargate internally.

The current implementation of the Data API uses DataStax Enterprise (DSE) as the backend database.

Version compatibility

Component/Library Name	Version
Mongoose	^8.14.0
data-api	1.x
DataStax Enterprise	6.8.x
Astra	Current

CI tests are run using the Stargate and Data API versions specified in the api-compatibility.versions file.

Sample Applications

Sample applications developed using astra-mongoose driver are available in below repository.

https://github.com/stargate/stargate-mongoose-sample-apps

Connecting to DSE/HCD

Astra-mongoose also supports connecting to self-hosted Data API instances backed by DSE/HCD. Astra-mongoose has a bin/start_data_api.sh script that you can run to start a local Data API instance backed by DSE using docker-compose for testing and development purposes.

./bin/start_data_api.sh

You can then connect to your local Data API instance using mongoose.connect() with isAstra: false as follows.

const mongoose = require('mongoose');
const { driver } = require('@datastax/astra-mongoose');

// Override the default Mongoose driver
mongoose.setDriver(driver);

await mongoose.connect('http://localhost:8181/v1/testks1', {
  isAstra: false,
  username: 'cassandra',
  password: 'cassandra'
});

Features Using Collections

Connection APIs

Operation Name	Description
createDatabase	When flag createNamespaceOnConnect is set to true the keyspace passed on to the mongoose.connect function via the URL, is created automatically. Not supported on Astra.
dropDatabase	Drops the database (not supported on Astra)
createCollection	mongoose.model('ModelName',modelSchema) creates a collection as required
dropCollection	model.dropCollection() drops the collection

Collection APIs

Operation Name	Description
countDocuments	Model.countDocuments(filter) returns the count of documents
deleteMany	Model.deleteMany(filter).
deleteOne	Model.deleteOne(filter, options) options - sort
find	Model.find(filter, projection, options) options - limit, pageState, skip, sort (skip works only with sorting)
findOne	Model.findOne(filter, options) options - sort Example: findOne({}, { sort: { username: -1 } })
findOneAndDelete	Model.findOneAndDelete(filter, options) options - sort
findOneAndReplace	Model.findOneAndReplace(filter, replacement, options) options upsert: (default false) true - if a document is not found for the given filter, a new document will be inserted with the values in the filter (eq condition) and the values in the $set and $setOnInsertoperators. false - new document will not be inserted when no match is found for the given filter -------- returnDocument: (default before) before - Return the document before the changes were applied after - Return the document after the changes are applied
findOneAndUpdate	Model.findOneAndUpdate(filter, update, options) options upsert: (default false) true - if a document is not found for the given filter, a new document will be inserted with the values in the filter (eq condition) and the values in the $set and $setOnInsertoperators. false - new document will not be inserted when no match is found for the given filter -------- returnDocument: (default before) before - Return the document before the changes were applied after - Return the document after the changes are applied
insertMany	Model.insertMany([{docs}], options) In a single call, only 20 records can be inserted. options - ordered
insertOne	Model.insertOne({doc})
updateMany	Model.updateMany(filter, update, options) options upsert: (default false) true - if a document is not found for the given filter, a new document will be inserted with the values in the filter (eq condition) and the values in the $set and $setOnInsertoperators. false - new document will not be inserted when no match is found for the given filter ** This API will throw an error when more than 20 records are found to be updated.
updateOne	Model.updateOne(filter, update, options) options upsert: (default false) true - if a document is not found for the given filter, a new document will be inserted with the values in the filter (eq condition) and the values in the $set and $setOnInsertoperators. false - new document will not be inserted when no match is found for the given filter -------- returnDocument: (default before) before - Return the document before the changes were applied after - Return the document after the changes are applied

Filter Clause

Operator	Description
literal comparison	Equal to. Example: { 'first_name' : 'jim' }
$eq	Example: { 'first_name' : { '$eq' : 'jim' } }
$gt	Example (age > 25): { 'age' : { '$gt' : 25 } }
$gte	Example (age >= 25): { 'age' : { '$gte' : 25 } }
$lt	Example (age < 25): { 'age' : { '$lt' : 25 } }
$lte	Example (age <= 25): { 'age' : { '$lte' : 25 } }
$ne	Example: { 'first_name' : { '$ne' : 'jim' } }
$in	Example: { '_id' : { '$in' : ['nyc', 'la'] } }
$nin	Example: { 'address.city' : { '$nin' : ['nyc', 'la'] } }
$not	Not supported.
$exists	Example: { 'address.city' : { '$exists' : true} }
$all	Array operation. Matches if all the elements of an array matches the given values. Example: { 'tags' : { '$all' : [ 'home', 'school' ] } }
$elemMatch	Not supported. Matches if the elements of an array in a document matches the given conditions. Example: {'goals': { '$elemMatch': { '$gte': 2, '$lt': 10 }}}
$size	Array Operation. Example: { 'tags' : { '$size' : 1 } }
$and (implicit)	Logical expression. Example : { '$and' : [ {first_name : 'jim'}, {'age' : {'$gt' : 25 } } ] }
$and (explicit)	Example : { '$and' : [ {first_name : 'jim'}, {'age' : {'$gt' : 25 } } ] }
$or	Example: { '$or' : [ {first_name : 'jim'}, {'age' : {'$gt' : 25 } } ] }

Projection Clause

Operator	Description
$elemMatch (projection)	Not supported
$slice	Array related operation. Example: { 'tags' : { '$slice': 1 }} returns only the first element from the array field called tags.
$ (projection)	Example: Model.find({}, { username : 1, _id : 0}) - This returns username in the response and the _id field

Sort Clause

Operator	Description
Single Field Sort	Supported
Multi Field Sort	Not supported

Update Clause

Operator	Description
$inc	Example: { '$inc': { 'points' : 5 } }
$min	Example: { 'col': { '$min' : 5 } } if the columns value is greater than 5, it will be updated with 5
$max	Example: { 'col': { '$max' : 50 } } if the columns value is lesser than 50, it will be updated with 50
$rename	Example: { $rename: { '$max' : 50 } } if the columns value is lesser than 50, it will be updated with 50
$set	Example: {'update' : {'$set': {'location': 'New York'} }}
$setOnInsert	Example: {'update' : {'$set': {'location': 'New York'}, '$setOnInsert': {'country': 'USA'} }}
$unset	Example: {'update' : {'$unset': [address.location] }}
$addToSet	Example: {'$addToSet' : {'points': 10}}. This will add 10 to an array called points in the documents, without duplicates (i.e. ll skip if 10 is already present in the array)
$pop	Example: {'$pop' : {'points': 1 }}. This removes the last 1 item from an array called points. -1 will remove the first 1 item.
$pull	Not supported
$push	Example. '$push': {'tags': 'work'}. This pushes an element called work to the array tags
$pullAll	Not supported

Index Operations

Index operations are not supported.

Aggregation Operations

Aggregation operations are not supported.

Transaction Operations

Transaction operations are not supported.

Vector Search

Vector search is supported. Define a $vector property in your schema, and you can sort documents by their distance to a given vector using sort({ $vector: { $meta } }) as follows.

const vectorSchema = new Schema(
    {
        $vector: { type: [Number], default: () => void 0, select: true },
        name: 'String'
    },
    {
        // Create a collection with a 2-dimensional $vector property
        collectionOptions: { vector: { dimension: 2, metric: 'cosine' } },
        autoCreate: false
    }
);
const Vector = mongoose.model('Vector', vectorSchema);
await Vector.createCollection();

// Find vectors that are closest to [1, 99]
const res = await Vector.find({}).sort({ $vector: { $meta: [1, 99] } });

Vectorize

Vectorize is supported. Define a $vectorize string property in your schema, and you can insert documents with a vector as follows.

const vectorSchema = new Schema(
    {
        $vector: { type: [Number], default: () => void 0, dimension: 1024 },
        $vectorize: { type: String },
        name: 'String'
    },
    {
        collectionOptions: {
            vector: {
                dimension: 1024,
                metric: 'cosine',
                service: { provider: 'nvidia', modelName: 'NV-Embed-QA' }
            }
        },
        autoCreate: false
    }
);
const Vector = mongooseInstance.model('Vector', vectorSchema);

const { _id } = await Vector.create({ name: 'Moby-Dick', $vectorize: 'Call me Ishmael.' });
// Need `select({ '*': 1 })` because Data API excludes $vector and $vectorize by default
const doc = await Vector.findById(_id).select({ '*': 1 }).orFail();

doc.$vectorize; // 'Call me Ishmael.'
doc.$vector; // Length 1024 array of numbers calculated by the embedding provider

Features Using Tables

You can enable the useTables option in the connection string to use the Tables API as opposed to the Collections API. The following operations are supported in the tables API.

Connection APIs

Operation Name	Description
createDatabase	When flag createNamespaceOnConnect is set to true the keyspace passed on to the mongoose.connect function via the URL, is created automatically. Not supported on Astra.
dropDatabase	Drops the database (not supported on Astra)
createTable	connection.createTable()
dropTable	connection.dropTable()

Table APIs

Operation Name	Description
countDocuments	Not supported
deleteMany	Model.deleteMany(filter).
deleteOne	Model.deleteOne(filter, options) Must specify _id in filter
find	Model.find(filter, projection, options) options - limit, skip, sort (skip works only with sorting)
findOne	Model.findOne(filter, options) options - sort Example: findOne({}, { sort: { username: -1 } })
findOneAndDelete	Not supported
findOneAndReplace	Not supported
findOneAndUpdate	Not supported
insertMany	Model.insertMany([{docs}], options)
insertOne	Model.insertOne({doc})
updateMany	Not supported
updateOne	Model.updateOne(filter, update, options) options upsert: (default false) true - if a document is not found for the given filter, a new document will be inserted with the values in the filter (eq condition) and the values in the $set and $setOnInsertoperators. false - new document will not be inserted when no match is found for the given filter

Filter Clause

Operator	Description
literal comparison	Equal to. Example: { 'first_name' : 'jim' }
$eq	Example: { 'first_name' : { '$eq' : 'jim' } }
$gt	Example (age > 25): { 'age' : { '$gt' : 25 } }
$gte	Example (age >= 25): { 'age' : { '$gte' : 25 } }
$lt	Example (age < 25): { 'age' : { '$lt' : 25 } }
$lte	Example (age <= 25): { 'age' : { '$lte' : 25 } }
$ne	Example: { 'first_name' : { '$ne' : 'jim' } }
$in	Example: { '_id' : { '$in' : ['nyc', 'la'] } }
$nin	Example: { 'address.city' : { '$nin' : ['nyc', 'la'] } }
$not	Not supported.
$exists	Not supported.
$all	Not supported.
$elemMatch	Not supported.
$size	Not supported.
$and (implicit)	Logical expression. Example : { '$and' : [ {first_name : 'jim'}, {'age' : {'$gt' : 25 } } ] }
$and (explicit)	Not supported.
$or	Not supported.

Sort Clause

Operator	Description
Single Field Sort	Supported
Multi Field Sort	Not supported

Update Clause

Operator	Description
$inc	Not supported.
$min	Not supported.
$max	Not supported.
$rename	Not supported.
$set	Example: {'update' : {'$set': {'location': 'New York'} }}
$setOnInsert	Not supported.
$unset	Example: {'update' : {'$unset': [address.location] }}
$addToSet	Not supported.
$pop	Not supported.
$pull	Not supported
$push	Not supported.
$pullAll	Not supported.

Index Operations

Indexes are supported. Indexes can be created using the createIndex method on the collection object, or by defining an index in your Mongoose schema. However, indexes are limited to 1 key: compound indexes are not supported.

const testSchema = new Schema({ testProperty: String, otherTestProperty: String });

testSchema.index({ testProperty: 1 });
const TestModel = mongoose.model('Test', testSchema);
await TestModel.createIndexes(); // Creates the index on `testProperty`

// Cannot do the following because it is a compound index (multiple keys).
// Throws a "indexSpec must have exactly 1 key" error
// testSchema.index({ testProperty: 1, otherTestProperty: 1 });

Aggregation Operations

Aggregation operations are not supported.

Transaction Operations

Transaction operations are not supported.

Vector Search

Vector search is supported. Define a property of type [Number] with a dimension property and Mongoose will treat it as a vector when you use tableDefinitionForSchema.

import { tableDefinitionFromSchema } from 'astra-mongoose';

const vectorSchema = new Schema(
    {
        vector: { type: [Number], default: () => void 0, dimension: 2 },
        name: 'String'
    },
    {
        autoCreate: false,
        autoIndex: false,
        versionKey: false
    }
);

const Vector = mongoose.model('VectorTable', vectorSchema, 'vector_table');

// Create table and vector index
await mongoose.connection.createTable('vector_table', tableDefinitionFromSchema(vectorSchema));
await mongoose.connection.collection('vector_table').createVectorIndex('vectortables', 'vector');

// Find vectors that are closest to [1, 99]
const res = await Vector.find({}, null, { includeSimilarity: true }).sort({ vector: { $meta: [1, 99] } });

Vectorize

Vectorize is supported. Use the Vectorize type exported by astra-mongoose.

import { tableDefinitionFromSchema, Vectorize } from 'astra-mongoose';

// Define raw document type override because Mongoose's TypeScript support can't infer the type of Vectorize
interface IVector {
    vector: string | number[] | null;
    name?: string | null;
}
const vectorSchema = new Schema<IVector>({ name: 'String' }, { autoCreate: false });
// Add the vectorize path using `schema.path()` and the `Vectorize` type for better TypeScript support.
// You can also do `type: Vectorize, dimension: 1024` in your schema definition.
vectorSchema.path('vector', new Vectorize('vector', {
    default: [],
    dimension: 1024,
    service: {
        provider: 'nvidia',
        modelName: 'NV-Embed-QA'
    }
}));

const Vector = mongoose.model('vector', vectorSchema, 'vector_table');

// Create table and vector index
await mongoose.connection.createTable('vector_table', tableDefinitionFromSchema(vectorSchema));
await mongoose.connection.collection('vector_table').createVectorIndex('vectortables', 'vector');

await Vector.create({ name: 'Recipe', vector: 'My Taco Recipe: 1 corn tortilla, 2 oz ground beef' });
await Vector.create({ name: 'Story', vector: 'Colorful butterflies soar high above the blooming garden' });

const doc = await Vector.findOne().sort({ vector: { $meta: 'mexican food' } }).orFail();
doc.name; // 'Recipe'
