govcy Express Services

⚠️ Warning:
This package is under active development and is not a finished product. It is intended for testing, acceptance, integration, and browser testing purposes only.

No guarantees are provided regarding stability, security, or compliance. Using this package does not imply your product or service will automatically pass any required assessments, audits, or certifications by the Cyprus government or any other authority.

You are responsible for ensuring your own compliance, security, and quality assurance processes.

📝 Description

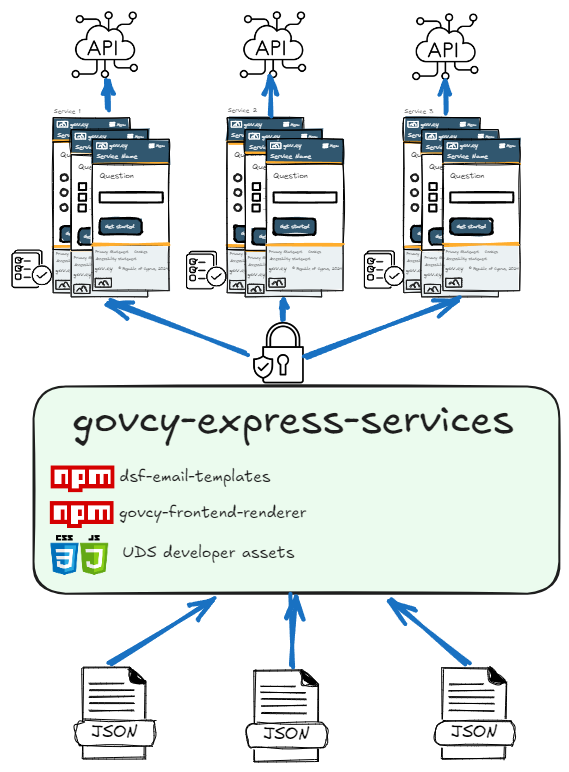

This project is an Express-based project that dynamically renders online service forms using @gov-cy/govcy-frontend-renderer. It is designed for developers building government services in Cyprus, enabling them to manage user authentication, form submissions, and OpenID authentication workflows in a timely manner.

The project is designed to support the Linear structure as described in the Unified Design System.

📝 Description
✨ Features
📋 Prerequisites
🚀 Quick start
✅ Best Practices
📦 Full installation guide
🛠️ Usage
🛣️ Routes
🔒 Security note
❓ Troubleshooting / FAQ
🙏 Credits
💡 Developer notes
📄 License
📬 Contact

✨ Features

Dynamic form rendering from JSON templates
- Support for textInput, textArea, select, radios, checkboxes, datePicker, dateInput
- Support for conditional radios
Dynamic creation of check your answers page
OpenID Connect authentication with CY Login
Middleware-based architecture for better maintainability
Supports routing for dynamic pages
Input validation
CSRF protection
cyLogin Single Sign-On (SSO) for physical authorized users
Pre-filling posted values (in the same session)
Site level API eligibility checks
API integration with retry logic for form submissions.

📋 Prerequisites

Node.js 20+
npm
A CY Login client ID and secret
An API endpoint for form submissions (through cyConnect)

🚀 Quick start

# 1. Install the package
npm install @gov-cy/govcy-express-services

# 2. Generate SSL certificates for local development
openssl req -x509 -newkey rsa:2048 -keyout server.key -out server.cert -days 365 -nodes

# 3. Create a .env file in your project root (see below for required variables)

# 4. Add a minimal data config file in /data (see test.json example)

# 5. Create an index.mjs file:

// index.mjs
import initializeGovCyExpressService from '@gov-cy/govcy-express-services';

const service = initializeGovCyExpressService();
service.startServer();

# 6. Start the server
npm start

Visit https://localhost:44319 in your browser.
Log in with CY Login and start using your dynamic service!

Tip:
For more details on configuration, environment variables, and advanced features, see the sections below.

📦 Full installation guide

The project acts as an npm package and you need to install it as a dependency in your npm project. Check out the install notes a detailed installation guide.

✅ Best Practices

Before starting your service, please review the Best Practices guide for guidance on:

Repository structure
Environment separation (dev / staging / prod)
Secure CY Login client registration
Mandatory footer pages (privacy, cookies, accessibility)

🛠️ Usage

Starting the Server

Add in your package.json:

"scripts": {
    "start": "node index.mjs"
}

Then run the server using npm start.

npm start

The server will start on https://localhost:44319 (see NOTES.md for more details on this).

Authentication Middleware

Authentication is handled via OpenID Connect using CY Login and is configured using environment variables. The middleware ensures users have valid sessions before accessing protected routes.

The CY Login tokens are used to also connect with the various APIs through cyConnect, so make sure to include the correct scope when requesting for a cyLogin client registration.

🧩 Dynamic Services Rendering

Services are rendered dynamically using JSON templates stored in the /data folder. All the service configuration, pages, routes, and logic is stored in the JSON files. The service will load data/:siteId.json to get the form data when a user visits /:siteId/:pageUrl. Checkout the express-service-shema.json and the example JSON structure of the test.json file for more details.

Here are some details explaining the JSON structure:

site object: Contains information about the site, including the site ID, language, and footer links. See govcy-frontend-renderer for more details. Some fields that are only specific to the govcy-express-forms project are the following:
- submission_data_version : The submission data version,
- renderer_version : The govcy-frontend-renderer version,
- design_systems_version : The govcy-design-system version,
- homeRedirectPage: An object mapping language codes to URLs. When a user visits the root route (e.g., https://whatever-your-service-is.service.gov.cy/), the system redirects to the URL for the user's language. If the user's language is not found, it falls back to "el" or the first available URL. If not provided, a list of available sites is shown. Example:
```
"homeRedirectPage": {
  "el": "https://www.gov.cy/service/aitisi-gia-taftotita/",
  "en": "https://www.gov.cy/en/service/issue-an-id-card/"
}
```
- matomo : The Matomo web analytics configuration details.
- eligibilityAPIEndpoints : An array of API endpoints, to be used for service eligibility. See more on the Eligibility API Endoints section below.
- submissionAPIEndpoint: The submission API endpoint, to be used for submitting the form. See more on the Submission API Endoint section below.
pages array: An array of page objects, each representing a page in the site.
- pageData object: Contains the metadata to be rendered on the page. See govcy-frontend-renderer for more details
- pageTemplate object: Contains the page template to be rendered on the page. See govcy-frontend-renderer for more details
  - elements array: An array of elements to be rendered on the page. See all supported govcy-frontend-renderer elements for more details

A typical service flow that includes pages index, question-1, question-2 under the pages array in the JSON file looks like this:

flowchart LR
    govcy-page --> isAuth{Is User Authenticated?}
    isAuth -- Yes<br><br> Eligibility Check --> index([:siteId/index])
    isAuth -- No --> cyLogin[cyLogin]
    cyLogin -- Eligibility Check --> index
    index --  Eligibility Check<br> Validations<br> Conditionals --> question-1[:siteId/question-1]
    question-1 --  Eligibility Check<br> Validations<br> Conditionals --> question-2[:siteId/question-2]
    question-2 --  Eligibility Check<br> Validations<br> Conditionals --> review[📄:siteId/review <br> <br> Automatically generated]
    review --  Eligibility Check<br> All Validations<br> All Conditionals --> success([✅:siteId/success <br> <br> Automatically generated])

Some pages are generated automatically by the project, such as the review and success pages.

Pages

Pages defined in the JSON file under the pages array, they rendered based on the govcy-frontend-renderer library, and they are served by the /:siteId/:pageUrl route. The pageData.nextPage field is used to determine the next page to render.

Here's an example of a page defined in the JSON file:

{
  "pageData": {
    "url": "index",
    "title": {
      "el": "Your email",
      "en": "Το email σας"
    },
    "layout": "layouts/govcyBase.njk",
    "mainLayout": "two-third",
    "nextPage": "telephone-number",
    "conditions": [
      {
        "expression": "dataLayer['test-service.inputData.somePage.formData.showExtra'] != 'yes'",
        "redirect": "review"
      }
    ]
  },
  "pageTemplate": {
    "sections": [
      {
        "name": "beforeMain",
        "elements": [
          {
            "element": "backLink",
            "params": {}
          }
        ],
        "params": {}
      },
      {
        "name": "main",
        "elements": [
          {
            "element": "form",
            "params": {
              "elements": [
                {
                  "element": "textInput",
                  "params": {
                      "label": {
                          "en": "What is your email?",
                          "el": "Ποιο είναι το email σας?"
                      },
                      "id": "email",
                      "name": "email",
                      "hint": {
                          "en": "We’ll only use this email for this application",
                          "el": "Θα χρησιμοποιήσουμε το email σας μόνο για αυτήν την υπηρεσία"
                      },
                      "type": "email",
                      "isPageHeading": true,
                      "fixedWidth": "50"
                  },
                  "validations": [
                    {
                        "check": "required",
                        "params": {
                        "message": {
                            "en": "Enter your email",
                            "el": "Εισαγάγετε το email σας"
                        }
                        }
                    },
                    {
                        "check": "valid",
                        "params": {
                        "checkValue": "email",
                        "message": {
                            "en": "Your email must be a valid email address",
                            "el": "To emial πρέπει να είναι έχει μορφή email address"
                        }
                        }
                    }
                ]
                },
                {
                  "element": "button",
                  "params": {
                    "id": "continue",
                    "variant": "primary",
                    "text": {
                      "el": "Συνέχεια",
                      "en": "Continue"
                    }
                  }
                }
              ]
            }
          }
        ]
      }
    ]
  }
}

The above page JSON generates a page that looks like the following screenshot:

The JSON structure is based on the govcy-frontend-renderer's JSON template.

Lets break down the JSON config for this page:

pageData are the page's meta data, such as the URL, title, layout, mainLayout, and nextPage.
- pageData.url is the URL of the page, in this case it's :siteId/index
- pageData.title is the title of the page, in this case it's Your email. This will be used in the review, success pages, the PDF, the email, and the submission platform.
- pageData.layout is the layout used to render the page. The project only supports the default layout layouts/govcyBase.njk
- pageData.mainLayout is the layout of the main section of the page, in this case it's two-third. It can be either two-third or max-width,
- pageData.nextPage is the next page to redirect to when the user clicks the continue button and all validations pass, in this case it will redirect to /:siteId/telephone-number
- pageData.conditions is the array that defines the conditional logic
pageTemplate is the page's template, which is a JSON object that contains the sections and elements of the page. Check out the govcy-frontend-renderer's documentation for more details.

Forms vs static content

If the pageTemplate includes a form element in the main section and button element, the system will treat it as form and will:
- Perform the eligibility checks
- Display the form
- Collect the form data
- Validate the form data
- Store the form data in the systems data layer
- Redirect the user to the next page (or review page if the user came from the review page)
Else if the pageTemplate does not include a form element in the main section, the system will treat it as static content and will:
- Not perform the eligibility checks
- Display the static content

When designing form pages, refer to the Unified Design System's question pages pattern.

Error pages Pages that can be used to display messages when eligibility or submission fail are simply static content pages. That is pages that do not include a form element.

Start page The start page should be created in the gov.cy portal and should be defined in the site.homeRedirectPage property in the site config JSON file. All pages within a service are private by default and can only be accessed by authenticated users, so the start page cannot be created in the JSON file.

Notes:

Check out the govcy-frontend-renderer's design elements for more details on the supported elements and their parameters.
Check out the input validations section for more details on how to add validations to the JSON file.

Review page

The review page is automatically generated by the project and includes the following sections:

Summary: A summary of the data from all the pages in the service.
Change links: A list of links to each page in the service.
Submit button: A button to submit the form.

Here's an example screenshot of review page

When the user clicks a change link, the user is redirected to the corresponding page in the service. After the user clicks on continue button the user is redirected back to the review page.

When the user clicks the Submit button, all the data gathered from the site's forms within this session are validated based on the validation definition in the JSON file, and if they pass they are submitted to the configured API endpoint.

Success page

The success page is automatically generated by the project, is accessible only when a submission is made successfully, and includes the following sections:

Success banner: A banner indicating that the form was successfully submitted, with the reference number of the submission.
PDF Download link: A link to download the PDF of the submission's data in a human-readable format.
Summary: A summary of the data from all the pages in the service.

Here's an example screenshot of success page

🛡️ Site eligibility checks

The project uses an array of API endpoints to check the eligibility of a service/site. To use this feature, you need to configure the following in your JSON file under the site object:

"eligibilityAPIEndpoints" : [
  {
    "url": "TEST_ELIGIBILITY_1_API_URL",
    "method": "POST",
    "clientKey": "TEST_SUBMISSION_API_CLIENT_KEY",
    "serviceId": "TEST_SUBMISSION_API_SERVIVE_ID",
    "cashingTimeoutMinutes": 2,
    "params": {
      "checkFor": "isCitizen,isAdult"
    },
    "response": {
      "errorResponse": {
        "102": {
          "error": "user not administrator",
          "page": "/test/user-not-admin"
        }
      }
    }
  },
  {
    "url": "TEST_ELIGIBILITY_2_API_URL",
    "clientKey": "TEST_SUBMISSION_API_CLIENT_KEY",
    "serviceId": "TEST_SUBMISSION_API_SERVIVE_ID",
    "cashingTimeoutMinutes": 60,
    "response": {
      "errorResponse": {
        "105": {
          "error": "user not registration",
          "page": "/test/user-not-registered"
        }
      }
    }
  }
]

If no eligibilityAPIEndpoints are configured, the system will not check for service eligibility for the specific site.

Lets break the JSON config down:

eligibilityAPIEndpoints : An array of API endpoints, to be used for service eligibility.
- url: The enviromental variable that holds the URL of the API endpoint.
- method: The HTTP method to use when making the request.
- clientId: The enviromental variable that holds the client ID to use when making the request.
- clientSecret: The enviromental variable that holds the client secret to use when making the request.
- cashingTimeoutMinutes: The number of minutes to cache the response from the API endpoint. If set to 0, the API endpoint will be called every time.
- params: An object of key-value pairs that will be added to the request body when making the request.
- response: An object of expected response when succeeded===false, to be used for the system to know which error page to show.

The above config references the following environment variables that need to be set:

TEST_ELIGIBILITY_1_API_URL=http://localhost:3002/check1
TEST_ELIGIBILITY_2_API_URL=http://localhost:3002/check2
TEST_SUBMISSION_API_CLIENT_KEY=12345678901234567890123456789000
TEST_SUBMISSION_API_SERVIVE_ID=123

With the above config, when a user visits a page under the specific site, /:siteId/*, the service sends a request to the configured eligibility API endpoints. If any of the API endpoints returns succeeded: false, the user is redirected to the error page specified in the response object.

The response is cached to the session storage for the specified number of minutes. If the cashingTimeoutMinutes is set to 0, the API endpoint will be called every time.

Here's a flowchart showing how the eligibility checks work:

flowchart LR
    A[🧭 User visits /:siteId/* page] --> B{{❓ Are eligibilityAPIEndpoints configured?}}
    B -- No --> H[✅ Access granted<br>Show page]
    B -- Yes --> D[🔁 Loop through API endpoints]

    D --> D1{{❓ Is cached response still valid?}}
    D1 -- Yes --> D2[🗃️ Use cached result]
    D1 -- No --> E[🔄 Send request with:<br>- Method GET or POST<br>- Auth header<br>- Params or body]

    D2 --> F{{❓ Did cached result<br>have Succeeded: true?}}
    E --> F

    F -- Yes --> G{{❓ More endpoints to check?}}
    G -- Yes --> D
    G -- No --> H

    F -- No --> I[📄 Check ErrorCode<br>in config]
    I --> J{{❓ Is ErrorCode in config?}}
    J -- Yes --> K[❌ Redirect to configured error page]
    J -- No --> L[❌ Show generic error page]

Eligibility API request and response

For each eligibility API endpoint, the project sends a request to the API endpoint. The project uses the CY Connect - OAuth 2.0 (CY Login) authentication policy, so the user's <access_token> is sent in the Authorization header.

Eligibility Request

HTTP Method:
- Defined per endpoint in the method property (defaults to GET if not specified).
URL:
- Resolved from the url property in your config (from the environment variable).
Headers:
- Authorization: Bearer <access_token> (form user's cyLogin access token)
- client-key: <clientKey> (from config/env)
- service-id: <serviceId> (from config/env)
- Accept: text/plain Parameters: The params object in your config is sent as query parameters for GET requests and as the request body for POST requests.

Example GET Request:

GET /check-eligibility?checkFor=isCitizen,isAdult HTTP/1.1
Host: localhost:3002
Authorization: Bearer eyJhbGciOi...
client-key: 12345678901234567890123456789000
service-id: 123
Accept: text/plain

Example POST Request:

POST /check-eligibility HTTP/1.1
Host: localhost:3002
Authorization: Bearer eyJhbGciOi...
client-key: 12345678901234567890123456789000
service-id: 123
Accept: text/plain
Content-Type: application/json

{
  "checkFor": "isCitizen,isAdult"
}

Eligibility Response

The API is expected to return a JSON response with the following structure (see govcyApiRequest.mjs for normalization):

On Success:

{
  "Succeeded": true,
  "ErrorCode": 0,
  "ErrorMessage": null,
}

On Failure:

{
  "Succeeded": false,
  "ErrorCode": 102,
  "ErrorMessage": "user not administrator"
}

Notes:

If no eligibilityAPIEndpoints are configured, the system will not check for service eligibility for the specific site.
The response is normalized to always use PascalCase keys (Succeeded, ErrorCode, etc.), regardless of the backend’s casing.
If Succeeded is false, the system will look up the ErrorCode in your config to determine which error page to show.

Caching

The response from each eligibility endpoint is cached in the session for the number of minutes specified by cashingTimeoutMinutes.
If cashingTimeoutMinutes is set to 0, the API endpoint will be called every time (no caching).
If omitted or null, the result is cached indefinitely.

Error Handling

If the API returns Succeeded: false, the user is redirected to the error page specified in your config for that error code.
If the API response is invalid or the request fails after retries, a generic error is shown.

References

Eligibility check logic: See govcyServiceEligibilityHandler.mjs
API call, normalization and retries: See govcyApiRequest.mjs

📤 Site Submissions

The project uses an API endpoint to submit the form data. The project uses the CY Connect - OAuth 2.0 (CY Login) authentication policy, so the user's <access_token> is sent in the Authorization header.

To use this feature, you need to configure the following in your JSON file under the site object:

"submissionAPIEndpoint": {
  "url": "TEST_SUBMISSION_API_URL",
  "clientKey": "TEST_SUBMISSION_API_CLIENT_KEY",
  "serviceId": "TEST_SUBMISSION_API_SERVIVE_ID",
  "response": {
    "errorResponse": {
      "102": {
        "error": "user not administrator",
        "page": "/test/user-not-admin"
      },
      "105": {
        "error": "user not registration",
        "page": "/test/user-not-registered"
      }
    }
  }
}

Lets break the JSON config down:

submissionAPIEndpoint: The submission API endpoint, to be used for submitting the form.
- url: The enviromental variable that holds the URL of the API endpoint.
- clientId: The enviromental variable that holds the client ID to use when making the request.
- clientSecret: The enviromental variable that holds the client secret to use when making the request.
- response: An object of expected response when Succeeded===false, to be used for the system to know which error page to show.

The above config references the following environment variables that need to be set:

TEST_SUBMISSION_API_URL=http://localhost:3002/success
TEST_SUBMISSION_API_CLIENT_KEY=12345678901234567890123456789000
TEST_SUBMISSION_API_SERVIVE_ID=123

With the above config, when a user submits the review page, the service sends a request to the configured submission API endpoint.

Here's a flowchart showing how the submission work:

flowchart LR
    A[📤 User submits review page] --> B[🔄 Send POST request]

    B --> C{{❓ Did response have Succeeded: true?}}

    C -- Yes --> D[✅ Show success confirmation with reference code]

    C -- No --> E[📄 Check ErrorCode in config]
    E --> F{{❓ Is ErrorCode in config?}}
    F -- Yes --> G[❌ Redirect to configured error page]
    F -- No --> H[❌ Show generic error page]

    B --> I{{❓ Did request fail or return invalid response?}}
    I -- Yes --> H

Submission API Request and Response

Submission Request:

HTTP Method: POST
URL: Resolved from the url property in your config (from the environment variable).
Headers:
- Authorization: Bearer <access_token> (form user's cyLogin access token)
- client-key: <clientKey> (from config/env)
- service-id: <serviceId> (from config/env)
- Accept: text/plain
Body: The body contains the prepared submission data, which is a JSON object with all the form data collected from the user across all pages.

Example Request:

POST /submission-endpoint HTTP/1.1
Host: localhost:3002
Authorization: Bearer eyJhbGciOi...
client-key: 12345678901234567890123456789000
service-id: 123
Accept: text/plain
Content-Type: application/json

{
  "submission_username": "username",
  "submission_email": "email@example.com",
  "submission_data": "{\"index\":{\"formData\":{\"certificate_select\":[\"birth\",\"permanent_residence\"]}}}",
  "submission_data_version": "1",
  "print_friendly_data": "[{\"pageUrl\":\"index\",\"pageTitle\":{\"el\":\"Επιλογή Εγγάφου\",\"en\":\"Document selection\",\"tr\":\"\"},\"fields\":[{\"id\":\"certificate_select\",\"name\":\"certificate_select\",\"label\":{\"el\":\"Τι έγγραφα επιθυμείτε να εκδώσετε;\",\"en\":\"What documents do you wish to issue?\"},\"value\":[\"birth\",\"permanent_residence\"],\"valueLabel\":[{\"el\":\"Πιστοποιητικό γέννησης\",\"en\":\"Birth certificate\",\"tr\":\"\"},{\"el\":\"Βεβαίωση μόνιμης διαμονής\",\"en\":\"Certificate of permanent residence\",\"tr\":\"\"}]}]}]",
  "renderer_data": "{\"element\":\"summaryList\",\"params\":{\"items\":[{\"key\":{\"el\":\"Επιλογή Εγγάφου\",\"en\":\"Document selection\",\"tr\":\"\"},\"value\":[{\"element\":\"summaryList\",\"params\":{\"items\":[{\"key\":{\"el\":\"Τι έγγραφα επιθυμείτε να εκδώσετε;\",\"en\":\"What documents do you wish to issue?\"},\"value\":[{\"element\":\"textElement\",\"params\":{\"text\":{\"en\":\"Birth certificate, Certificate of permanent residence\",\"el\":\"Birth certificate, Certificate of permanent residence\",\"tr\":\"Birth certificate, Certificate of permanent residence\"},\"type\":\"span\"}}]}]}}]}]}}",
  "renderer_version": "1.14.3",
  "design_systems_version": "3.2.0",
  "service": "{\"id\":\"test\",\"title\":{\"el\":\"Υπηρεσία τεστ\",\"en\":\"Test service\",\"tr\":\"\"}}"
}

Submission Response

The API is expected to return a JSON response with the following structure (see govcyApiRequest.mjs for normalization):

On Success:

{
  "Succeeded": true,
  "ErrorCode": 0,
  "ErrorMessage": null,
  "Data": {
    "referenceValue": "12345678"
  }
}

On Failure:

{
  "Succeeded": false,
  "ErrorCode": 102,
  "ErrorMessage": "user not administrator"
}

Notes:

The response is normalized to always use PascalCase keys (Succeeded, ErrorCode, etc.), regardless of the backend’s casing.
If Succeeded is false, the system will look up the ErrorCode in your config to determine which error page to show.

Error Handling

If the API returns Succeeded: false, the user is redirected to the error page specified in your config for that error code.
If the API response is invalid or the request fails after retries, a generic error is shown.

References

Request/response logic: See govcyReviewPostHandler.mjs
API call, normalization and retries: See govcyApiRequest.mjs

Submission Data

The data is collected from the form elements and the data layer and are sent via the submission API in the following format:

"submissionData": {             // Site level successful submission data
  "submission_username" : "",   // User's username
  "submission_email" : "",      // User's email
  "submission_data": "{}",      // Raw data as submitted by the user in each page
  "submission_data_version": "",// The submission data version
  "print_friendly_data": "[]",  // Print friendly data
  "renderer_data" :"{}",        // Renderer data of the summary list
  "renderer_version": "",       // The renderer version
  "design_systems_version": "", // The design systems version
  "service": "{}"               // Service info
}

Submission Data Sample

Click here for a sample submission data JSON

ℹ️ Note:

When sent to the API, the fields submission_data, renderer_data, print_friendly_data, and service are stringified using JSON.stringify().

The sample below shows the structure before stringification for clarity.

{
  "submission_username": "username",        // User's username
  "submission_email": "email@example.com",  // User's email
  "submission_data_version": "0.1",         // Submission data version
  "submission_data": {                      // Submission raw data. Object, will be stringified
    "index": {                              // Page level
      "formData": {
        "id_select": ["id", "arc"],         // field level. Could be string or array
        "id_number": "654654",
        "arc_number": "",
        "aka": "232323"
      }
    },
    "appointment": {
      "formData": {
        "diorismos": "monimos",
        "fileno_monimos": "3233",
        "eidikotita_monimos": "1",
        "fileno_sumvasiouxos": "",
        "eidikotita_sumvasiouxos": "",
        "fileno_aoristou": "",
        "eidikotita_aoristou": "",
        "program": "",
        "fileno_orismenou": ""
      }
    },
    "takeover": {
      "formData": {
        "date_start_day": "11",
        "date_start_month": "12",
        "date_start_year": "2020",
        "date_on_contract": "date_other",
        "date_contract": "16/04/2025",
        "reason": "24324dssf"
      }
    }
  },
  "submission_data_version": "1",           // Submission data version
  "renderer_data": {                        // Summary list renderer data ready for rendering . Object, will be stringified
    "element": "summaryList",
    "params": {
      "items": [
        {
          "key": {
            "el": "Στοιχεία του  εκπαιδευτικού",
            "en": "Educator's details",
            "tr": ""
          },
          "value": [
            {
              "element": "summaryList",
              "params": {
                "items": [
                  {
                    "key": {
                      "el": "Ταυτοποίηση",
                      "en": "Identification"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "Ταυτότητα, ARC",
                            "el": "Ταυτότητα, ARC",
                            "tr": "Ταυτότητα, ARC"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  },
                  {
                    "key": {
                      "el": "Εισαγάγετε αριθμό ταυτότητας",
                      "en": "Enter ID number"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "121212",
                            "el": "121212",
                            "tr": "121212"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  },
                  {
                    "key": {
                      "el": "Αριθμός κοινωνικών ασφαλίσεων",
                      "en": "Social Insurance Number"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "112121",
                            "el": "112121",
                            "tr": "112121"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  }
                ]
              }
            }
          ]
        },
        {
          "key": {
            "el": "Διορισμός εκπαιδευτικού",
            "en": "Teachers appointment",
            "tr": ""
          },
          "value": [
            {
              "element": "summaryList",
              "params": {
                "items": [
                  {
                    "key": {
                      "el": "Τι διορισμό έχει ο εκπαιδευτικός;",
                      "en": "What type of appointment does the teacher have?"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "Συμβασιούχος",
                            "el": "Συμβασιούχος",
                            "tr": "Συμβασιούχος"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  },
                  {
                    "key": {
                      "el": "Αριθμός φακέλου (ΠΜΠ)",
                      "en": "File Number"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "1212",
                            "el": "1212",
                            "tr": "1212"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  },
                  {
                    "key": {
                      "el": "Ειδικότητα",
                      "en": "Specialty"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "Καθηγητής",
                            "el": "Καθηγητής",
                            "tr": "Καθηγητής"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  }
                ]
              }
            }
          ]
        },
        {
          "key": {
            "el": "Ημερομηνία ανάληψης",
            "en": "Takeover date",
            "tr": ""
          },
          "value": [
            {
              "element": "summaryList",
              "params": {
                "items": [
                  {
                    "key": {
                      "el": "Ημερομηνία ανάληψης",
                      "en": "Start Date"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "16/04/2025",
                            "el": "16/04/2025",
                            "tr": "16/04/2025"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  },
                  {
                    "key": {
                      "el": "Η ημερομηνία αυτή είναι η ίδια με αυτή του συμβολαίου;",
                      "en": "Is this date the same as the contract date?"
                    },
                    "value": [
                      {
                        "element": "textElement",
                        "params": {
                          "text": {
                            "en": "Ναι, είναι η ίδια με αυτή του συμβολαίου",
                            "el": "Ναι, είναι η ίδια με αυτή του συμβολαίου",
                            "tr": "Ναι, είναι η ίδια με αυτή του συμβολαίου"
                          },
                          "type": "span"
                        }
                      }
                    ]
                  }
                ]
              }
            }
          ]
        }
      ]
    }
  },
  "print_friendly_data": [                  // Print friendly data. Object, will be stringified
    {
      "pageUrl": "index",                     // Page URL
      "pageTitle": {                          // Page title
        "el": "Στοιχεία του  εκπαιδευτικού",
        "en": "Educator's details",
        "tr": ""
      },
      "fields": [                             // Fields
        {
          "id": "id_select",                    // Field ID
          "label": {                            // Field label
            "el": "Ταυτοποίηση",
            "en": "Identification"
          },
          "value": ["id", "arc"],          // Field value. Could be string or array
          "valueLabel": [                       // Field value label. Could be string or array
            {
              "el": "Ταυτότητα",
              "en": "ID",
              "tr": ""
            },
            {
              "el": "ARC",
              "en": "ARC",
              "tr": ""
            }
          ]
        },
        {
          "id": "id_number",
          "label": {
            "el": "Εισαγάγετε αριθμό ταυτότητας",
            "en": "Enter ID number"
          },
          "value": "654654",
          "valueLabel": {
            "el": "654654",
            "en": "654654"
          }
        },
        {
          "id": "aka",
          "label": {
            "el": "Αριθμός κοινωνικών ασφαλίσεων",
            "en": "Social Insurance Number"
          },
          "value": "232323",
          "valueLabel": {
            "el": "232323",
            "en": "232323"
          }
        }
      ]
    },
    {
      "pageUrl": "appointment",
      "pageTitle": {
        "el": "Διορισμός εκπαιδευτικού",
        "en": "Teachers appointment",
        "tr": ""
      },
      "fields": [
        {
          "id": "diorismos",
          "label": {
            "el": "Τι διορισμό έχει ο εκπαιδευτικός;",
            "en": "What type of appointment does the teacher have?"
          },
          "value": "monimos",
          "valueLabel": {
            "el": "Μόνιμος επί δοκιμασία",
            "en": "Permanent on probation",
            "tr": ""
          }
        },
        {
          "id": "fileno_monimos",
          "label": {
            "el": "Αριθμός φακέλου (ΠΜΠ)",
            "en": "File Number"
          },
          "value": "3233",
          "valueLabel": {
            "el": "3233",
            "en": "3233"
          }
        },
        {
          "id": "eidikotita_monimos",
          "label": {
            "el": "Ειδικότητα",
            "en": "Specialty"
          },
          "value": "1",
          "valueLabel": {
            "el": "Δάσκαλος",
            "en": "Elementary teacher",
            "tr": ""
          }
        }
      ]
    },
    {
      "pageUrl": "takeover",
      "pageTitle": {
        "el": "Ημερομηνία ανάληψης",
        "en": "Takeover date",
        "tr": ""
      },
      "fields": [
        {
          "id": "date_start",
          "label": {
            "el": "Ημερομηνία ανάληψης",
            "en": "Start Date"
          },
          "value": "2020-12-11",
          "valueLabel": {
            "el": "11/12/2020",
            "en": "11/12/2020"
          }
        },
        {
          "id": "date_on_contract",
          "label": {
            "el": "Η ημερομηνία αυτή είναι η ίδια με αυτή του συμβολαίου;",
            "en": "Is this date the same as the contract date?"
          },
          "value": "date_other",
          "valueLabel": {
            "el": "Όχι, αυτή είναι διαφορετική",
            "en": "No, this is different",
            "tr": ""
          }
        },
        {
          "id": "date_contract",
          "label": {
            "el": "Ημερομηνία συμβολαίου",
            "en": "Contract Date"
          },
          "value": "16/04/2025",
          "valueLabel": {
            "el": "16/04/2025",
            "en": "16/04/2025"
          }
        },
        {
          "id": "reason",
          "label": {
            "el": "Αιτιολόγηση καθυστέρησης στην ανάληψη καθηκόντων",
            "en": "Reason for delay in assuming duties"
          },
          "value": "24324dssf",
          "valueLabel": {
            "el": "24324dssf",
            "en": "24324dssf"
          }
        }
      ]
    }
  ],
  "renderer_version": "1.14.1",              // Renderer version
  "design_systems_version": "3.1.0",          // Design systems version
  "service": {                                // Service metadata. Object, will be stringified
    "id": "takeover",
    "title": {
      "el": "Βεβαίωση ανάληψης καθηκόντων εκπαιδευτικών",
      "en": "Certificate of teachers takeover"
    }
  }
}

✅ Input Validations

The project includes input validation for the following elements:

textInput
textArea
select
radios
checkboxes
datePicker
dateInput

The validation rules for each element are defined in the "validations array for each element. The project support the following validations:

valid: Checks the value against the specified rule's checkValue. Available rules:
- numeric: Numeri input
- numDecimal: Numeric decimal input
- currency: Currency input (numeric with 2 decimal places)
- alpha: Alphabetic input
- alphaNum: Alphanumeric input
- name: Name input
- tel: Telephone input
- mobile: Mobile input
- telCY: Cyprus telephone input
- mobileCY: Cyprus mobile input
- iban: IBAN input
- email: Email input
- date: Date input (DD/MM/YYYY)
- dateISO: ISO date input YYYY-M-D
- dateDMY: European/Common Format date input D/M/YYYY
required: Checks if the value is not null, undefined, or an empty string (after trimming).
length: Checks if the value has a maximum length passed in the checkValue parameter.
regCheck: Checks if the value matches the specified regular expression passed in the checkValue parameter.
minValue: Checks if the value is greater than or equal to the specified minimum value passed in the checkValue parameter.
maxValue: Checks if the value is less than or equal to the specified maximum value passed in the checkValue parameter.
minValueDate: Checks if the value is greater than or equal to the specified minimum date passed in the checkValue parameter.
maxValueDate: Checks if the value is less than or equal to the specified maximum date passed in the checkValue parameter.
minLength: Checks if the value has a minimum length passed in the checkValue parameter.

Example:

"validations": [
    {
        "check": "required",
        "params": {
        "message": {
            "en": "Enter your IBAN",
            "el": "Εισαγάγετε το IBAN σας"
        }
        }
    },
    {
        "check": "valid",
        "params": {
        "checkValue": "iban",
        "message": {
            "en": "IBAN must be a valιd iban, for example",
            "el": "To ΙΒΑΝ πρέπει να είναι έχει μορφή iban"
        }
        }
    }
]

✅ Conditional logic

The project supports conditional logic on pages. Conditional logic is evaluated using a custom govcyExpressions.mjs module, which executes expressions in a safe and scoped context using new Function. Only safe data access through the dataLayer is allowed. The system uses expressions and session data from the service's data layer to decide if a page will be shown or not.

The conditional logic is defined in the pageData.conditions array for each page. The project calculates the pageData.conditions[i].expression expression at run time and if the condition is true, the current page is ignored and the user is redirected to the pageData.conditions[i].redirect url. The pages whose conditions are true:

are skiped from normal flow and user is redirected to the pageData.conditions[i].redirect url
the pages are ignored from:
- the review page summary list, success page summary list and email
- when validating all inputs when posting the review page (before submission)
- the data submitted via the API

The following diagram shows the logic that runs on every request to a page. If any condition evaluates to true, the page is skipped and the user is redirected.

flowchart LR
    A[⬅️ User navigates to /:siteId/:pageUrl] --> B{{Does pageData.conditions exist?}}
    B -- No --> C[✅ Render the page]
    B -- Yes --> D[🔁 Loop through conditions]

    D --> E{{Evaluate condition.expression}}
    E -- returns true --> F[➡️ Redirect to condition.redirect]
    E -- returns false --> G{{More conditions?}}

    G -- Yes --> D
    G -- No --> C[✅ Render the page]

How to define conditional logic

Each page in your JSON config can optionally include a conditions array inside the pageData object. The conditions array is an array of objects that define the conditions to evaluate and the corresponding redirect URL. For example the following JSON config:

"conditions": [
  {
    "expression": "dataLayer['my-service.inputData.step1.formData.showExtra'] == 'no'",
    "redirect": "review"
  }
]

Here is the same example as part of the page config:

{
  "pageData": {
    "url": "page-1",
    "title": {
      "el": "Σελίδα 1",
      "en": "Page 1",
      "tr": ""
    },
    "layout": "layouts/govcyBase.njk",
    "mainLayout": "two-third",
    "conditions": [     //---- conditionals start here
      {
        "expression": "dataLayer['my-service.inputData.step1.formData.showExtra'] == 'no'",
        "redirect": "review"
      }
    ],                  //---- conditionals end here
    "nextPage": "page-2"
  },
  "pageTemplate": {
    "sections": [
    ...
    ...
  }
}

When the condition evaluates to true, the page is skipped and the user is redirected to the given redirect URL and are excluded from the service. Note that:

Multiple conditions are checked in order (first match wins)
Conditions can be chained across pages (redirect triggers another check)

Expressions

Expressions are written using JavaScript syntax and are evaluated at runtime in a sandboxed environment. You can use:

comparison operators (==, ===, !=, <, >, etc.)
logical operators (&&, ||, !)
string methods (.includes(), .toLowerCase())
safety fallbacks using || or optional chaining ?..

🔐 Only the dataLayer variable is available inside the expression scope, all other variables or globals (like window, document, etc.) are blocked for safety.

Some supported examples:

dataLayer['site.inputData.page.formData.agree'] === 'yes'
(dataLayer['site.inputData.page.formData.age'] || 0) >= 18
String(dataLayer['site.inputData.page.formData.status'] || '').toLowerCase().includes('inactive')

Expressions should not:

Try to access external or global variables (they are not available).
Attempt to execute unsafe operations like fetch(), eval(), alert(), etc.

Expressions are parsed using new Function() inside a restricted evaluator (govcyExpressions.mjs), and errors are caught and logged without crashing the application. If an expression returns true, the corresponding redirect is triggered.

Data used in the expressions with the `dataLayer`

The expressions can only access dataLayer values. The data layer is basically a read-only object that contains the data stored within a session, things like values inputed by the user or results from eligibility checks. It's scoped per site and follows a strict structure. Note that you can only use the dataLayer array to access data for the current site.

To use data layer values, use the special dataLayer[] array. For example dataLayer['conditional-test-service.inputData.index.formData.showExtra'] will get the value stored in the data store for:

conditional-test-service refers to the site with that siteID
- inputData is a reserved word for the data inputed by the user for that site
  - indexrefers to the page with that URL
    - formData is a reserved word for the form data (already inputed data by the user) for that page
      - showExtrarefers to a input component with that name

The dataLayer typically contains keys such as:

inputData: All data submitted by the user through forms
eligibilityResults: Cached results from service eligibility API checks

Example structure for a service with ID my-service:

dataLayer = {
  'my-service.inputData.index.formData.fullName': 'John Smith',
  'my-service.inputData.index.formData.age': '34',
  'my-service.inputData.contact-details.formData.telephone': '+35712345678',
  'my-service.inputData.contact-details.formData.email': 'test@example.com',
  "my-service.inputData.what-do-you-want.formData.certificate-select": [
    "birth",
    "permanent_residence"
  ],
  'my-service.inputData.want-to-apply.formData.option-radio': 'yes',
  'my-service.eligibilityResults.check1.succeeded': true,
  'my-service.eligibilityResults.check2.ErrorCode': 0
}

If any part of the key path is missing (e.g., the page hasn’t been visited yet or a form field was left empty), the expression will safely return undefined and will not throw an error. This behavior is by design, so that conditional logic expressions can fail silently and fallback gracefully.

For this reason, it's strongly recommended to use fallback values using ||, like:

String(dataLayer['my-site.inputData.index.formData.status'] || '').toLowerCase()

Best practice note

Developers should ensure expressions are resilient to missing or undefined values in the data layer. Since invalid paths like dataLayer['x.y.z'] will return undefined and will not throw errors, use fallbacks such as || '' or wrappers like String(...).toLowerCase() to avoid unexpected behavior. Silent false positives are possible if expressions do not guard against undefined values.

Bad Example:

dataLayer['site.inputData.page.formData.status'].toLowerCase().includes('inactive')

This will throw an error if status is undefined.

Good Example:

String(dataLayer['site.inputData.page.formData.status'] || '').toLowerCase().includes('inactive')

This ensures the expression works even if the field is missing or undefined.

Examples of conditional logic configuration

See below some examples how to use the conditional logic for pages.

1. Simple example:

"conditions": [
  {
    "expression": "dataLayer['conditional-test-service.inputData.index.formData.showExtra'] == 'no'",
    "redirect": "next-page"
  }
]

Explanation:

dataLayer['conditional-test-service.inputData.index.formData.showExtra']: gets the value stored in the data store for:
- site with siteID conditional-test-service
- input data for that site
- page with URL index
- form data (already inputed data by the user) for that page
- field with name showExtra
== 'no': checks if the value is equal to 'no'

2. Expression example using JS string functions:

"conditions": [
  {
    "expression": "dataLayer['conditional-test-service.inputData.index.formData.showExtra'] == 'no' && String(dataLayer['conditional-test-service.inputData.details.formData.info'] || '').toLowerCase().includes('hide')",
    "redirect": "next-page"
  }
]

Explanation:

String(dataLayer['...'] || ''): ensures it's always a string, even if the value is undefined or null.
toLowerCase(): converts the string to lowercase.
includes('hide'): checks if the string contains the substring 'hide'.

3. Multiple conditions example:

"conditions": [
  {
    "expression": "String(dataLayer['conditional-test-service.inputData.index.formData.showExtra'] || '').toLowerCase().includes('no')",
    "redirect": "next-page"
  },
  {
    "expression": "String(dataLayer['conditional-test-service.inputData.details.formData.info'] || '').toLowerCase().includes('hide')",
    "redirect": "review"
  }
]

Explanation:

Multiple conditions are checked in order (first match wins)
String(dataLayer['...'] || ''): ensures it's always a string, even if the value is undefined or null.
toLowerCase(): converts the string to lowercase.
includes('hide'): checks if the string contains the substring 'hide'.

4.Example with select input that can have either string or array value:

"conditions": [
  {
    "expression": "[].concat(dataLayer['conditional-test-service.inputData.index.formData.certificate_select'] || []).includes('birth')",
    "redirect": "next-page"
  }
]

Explanation:

dataLayer['...']: accesses the field from the session data.
|| []: ensures it's always an array, even if the value is undefined or null.
[].concat(...): safely flattens a string or array into an array.
.includes('value1'): checks if the value is selected.

🛣️ Routes

The project uses express.js to serve the following routes:

Service routes:

/:siteId: Requires cyLogin authentication for authorized individual users. Redirects to /:siteId/index.
/:siteId/:pageUrl: Requires cyLogin authentication for authorized individual users. Based on /data/:siteId.json, Renders the specified page template. Validates page and saves data to session. If validation fails, errors are displayed with links to the inputs.
/:siteId/review: Requires cyLogin authentication for authorized individual users. Renders the check your answers page template. Validates all pages in the service and submits the data to the configured API endpoint. If validation fails, errors are displayed with links to the relevant pages.
/:siteId/success: Requires cyLogin authentication for authorized individual users. Renders latest successful submission.
/:siteId/success/pdf: Requires cyLogin authentication for authorized individual users. Downloads the PDF of the latest successful submission.

Authentication routes:

/signin-oidc: CY Login authentication endpoint.
/login: Redirect to CY Login login page.
/logout: CY Login logout endpoint.

Absolutely! Here’s a ready-to-paste Troubleshooting / FAQ section you can add near the end of your README, just before Credits or Developer notes.

🔒 Security note

Always set a strong, random SESSION_SECRET in your .env file. Never commit secrets or credentials to version control.
Add .gitignore & .npmignore: Ensure no real .env, server.key, or other sensitive files are published.
In production, ensure cookies are set with secure, httpOnly, and sameSite attributes to protect against common web vulnerabilities.
Make sure your server is running behind HTTPS in production.
Regularly rotate secrets and credentials, and restrict access to your .env and configuration files.
Validate user input to prevent injection attacks.
Review and update your dependencies regularly to address security vulnerabilities.

Tip: This project enables CSRF protection and secure session cookies by default, but it is your responsibility to keep secrets and environment variables safe in production.

❓ Troubleshooting / FAQ

SSL certificate errors on local development

Problem: Browser shows a warning or refuses to connect to https://localhost:44319.
Solution: Make sure you have generated self-signed certificates as described in the installation guide. You may need to trust the certificate in your browser or OS.

Session not persisting / users logged out unexpectedly

Problem: Users are logged out or session data is lost between requests.
Solution: Ensure your SESSION_SECRET is set in .env and is long and random. If running behind a proxy (like nginx), set trust proxy in your Express app.

CY Login authentication not working

Problem: Users cannot log in or are redirected incorrectly.
Solution: Double-check your CY Login client ID, secret, scope and redirect URIs in .env. Make sure your app is accessible at the correct URL and port.

API requests fail with 401/403 errors

Problem: Eligibility or submission API calls fail with authorization errors.
Solution: Ensure the user's access token is being sent in the Authorization header. Check that your API endpoint and credentials are correct. Check that the CY Login you have configured has the correct scope that the API endpoint requires.

Changes to JSON config not reflected

Problem: Updates to your /data/:siteId.json file don’t show up in the app.
Solution: Restart the server after making changes to config files, as they are loaded at startup. If the problem persists, check your JSON file syntax and ensure it is valid. Also check if the definition of the elements is as defined in the govcy-frontend-renderer library.

Environment variables not loading

Problem: The app fails to start or cannot find required configuration values.
Solution: Make sure your .env file exists in the project root and is formatted correctly. Restart the server after making changes to .env.

Port already in use

Problem: The server fails to start with an error like EADDRINUSE: address already in use.
Solution: Another process is using the same port. Either stop the other process or change the PORT value in your .env file.

Cannot connect to CY Login or API endpoints

Problem: The app cannot reach CY Login or your API endpoints.
Solution: Check your network connection, firewall settings, and that the URLs in your .env are correct and accessible from your environment.

🙏 Credits

Cyprus Government Digital Services Factory (DSF) dsf-admin@dits.dmrid.gov.cy
Cyprus Connecting Digital Services Team cds-support@dits.dmrid.gov.cy

💡 Developer notes

For local develoment checke the developer notes document.

📄 License

This project is released under the MIT License.

📬Contact

If you have any questions or feedback, please feel free to reach out to us at dsf-admin@dits.dmrid.gov.cy

@gov-cy/govcy-express-services

govcy Express Services

📝 Description

Table of contents

✨ Features

📋 Prerequisites

🚀 Quick start

📦 Full installation guide

✅ Best Practices

🛠️ Usage

Starting the Server

Authentication Middleware

🧩 Dynamic Services Rendering

Pages

Review page

Success page

🛡️ Site eligibility checks

Eligibility API request and response

📤 Site Submissions

Submission API Request and Response

Submission Data

Submission Data Sample

✅ Input Validations

✅ Conditional logic

How to define conditional logic

Expressions

Data used in the expressions with the dataLayer

Examples of conditional logic configuration

🛣️ Routes

Service routes:

Authentication routes:

🔒 Security note

❓ Troubleshooting / FAQ

SSL certificate errors on local development

Session not persisting / users logged out unexpectedly

CY Login authentication not working

API requests fail with 401/403 errors

Changes to JSON config not reflected

Environment variables not loading

Port already in use

Cannot connect to CY Login or API endpoints

🙏 Credits

💡 Developer notes

📄 License

📬Contact

Readme

Keywords

Package Sidebar

Install

Repository

Homepage

DownloadsWeekly Downloads

Version

License

Unpacked Size

Total Files

Last publish

Collaborators

Data used in the expressions with the `dataLayer`

Weekly Downloads
