@roadiehq/backstage-plugin-argo-cd-backend

Argo CD Plugin Backend for Backstage

New Backend System

import { argocdServiceFactory } from '@roadiehq/backstage-plugin-argo-cd-backend';

backend.add(argocdServiceFactory); // Import Service Factory
backend.add(import('@roadiehq/backstage-plugin-argo-cd-backend/alpha')); // Import Plugin

If you have middleware you'd like to add, consider creating a module on top of this plugin.

Support for multiple ArgoCD instances

If you want to create multiple components that fetch data from different argoCD instances, you can dynamically set the ArgoCD instance url by adding the following to your app-config.yaml files.

The Argo plugin will fetch the Argo CD instances an app is deployed to and use the backstage-plugin-argo-cd-backend plugin to reach out to each Argo instance based on the mapping mentioned below.

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  appLocatorMethods:
    - type: 'config'
      instances:
        - name: argoInstance1
          url: https://argoInstance1.com
          token: ${ARGOCD_AUTH_TOKEN} # optional
        - name: argoInstance2
          url: https://argoInstance2.com
          # dedicated username/password for this instance
          username: ${ARGOCD_USERNAME_INSTANCE_2} # optional
          password: ${ARGOCD_PASSWORD_INSTANCE_2} # optional

Authentication

Option 1: Add the required auth tokens to environmental variables, ARGOCD_USERNAME and ARGOCD_PASSWORD inside the argocd object. It will be use as credentials for all instances by default.

Example

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  appLocatorMethods:
    - type: 'config'
      instances:
        - name: argoInstance1
          url: https://argoInstance1.com
        - name: argoInstance2
          url: https://argoInstance2.com

Option 2: Define a username and a password for each instance. It has an higher priority than Option 1.

Example

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  appLocatorMethods:
    - type: 'config'
      instances:
        - name: argoInstance1
          url: https://argoInstance1.com
        - name: argoInstance2
          url: https://argoInstance2.com
          # dedicated username/password for this instance
          username: ${ARGOCD_USERNAME_INSTANCE_2}
          password: ${ARGOCD_PASSWORD_INSTANCE_2}

Option 3: Define a token for each instance. It has an higher priority than Option 1 and Option 2.

Example

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  appLocatorMethods:
    - type: 'config'
      instances:
        - name: argoInstance1
          url: https://argoInstance1.com
          token: ${ARGOCD_AUTH_TOKEN} # Token to use to instance 1

Option 4: Define a azure service principal credentials. It has the lowest priority of all other options.

Example

argocd:
  # Upper Level Argo OIDC Config using Azure signals to use azure for logging in purposes, if no other login options available.
  oidcConfig:
    provider: azure # currently only the term azure is supported
    providerConfigKey: <anyConfigKey> # this is where your azure config is found. You may provide any key here so long as it's found in your config.
  appLocatorMethods:
    - type: config
      instances:
        - name: argoInstance1
          url: https://argoInstance1.com

azure: # azure config must have these fields below (key for where the config is found can vary).
  tenantId: ${AZURE_TENANT_ID}
  clientId: ${AZURE_CLIENT_ID}
  clientSecret: ${AZURE_CLIENT_SECRET}
  loginUrl: https://login.microsoftonline.com

Special Notes on Authenticating with Azure Active Directory (Microsoft Entra ID)

For azure service principal authentication you need to configure a few things to allow for a successful client_credentials auth flow.

1. Ensure the service principal you want to use is added to the appropriate AD groups you have configured for RBAC.

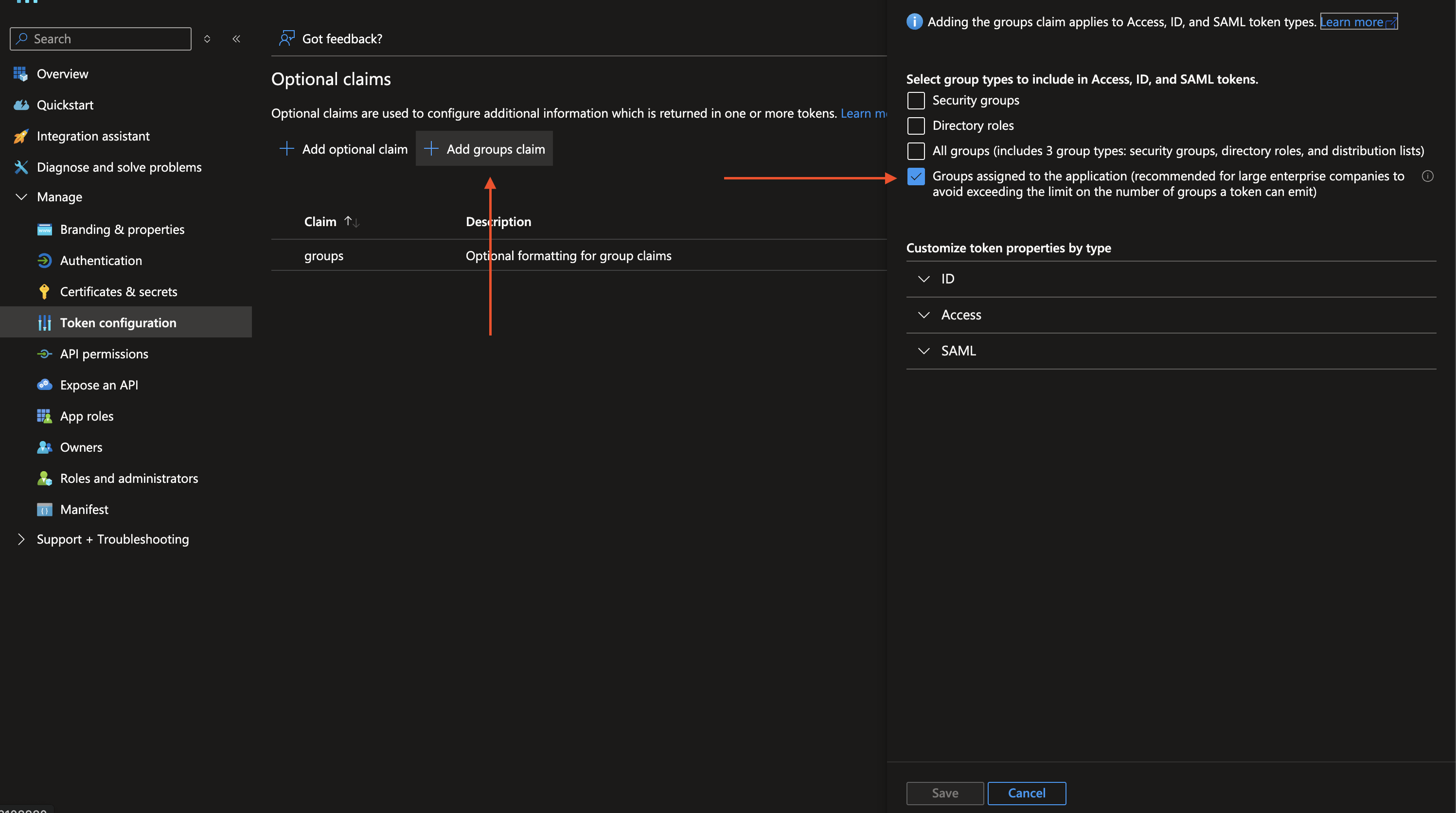

2. You have to opt the .default client_credentials flow into receiving the groups on the token. This is because argo uses the groups claim on an oauth token to ensure RBAC rules.



3. Argo validates the aud claim on the token defaulting to the ClientId of the service principal you have configured in argocd-cm if allowedAudiences is not set. If you are using a DIFFERENT service principal from the one you have configured argo to use as the SSO service principal you will need to ensure you add it as an argocd-cm value allowedAudiences. Further documentaion

Example:

  oidc.config: >
    name: Azure
    issuer: https://login.microsoftonline.com/<ClientId>/v2.0
    clientID: <ClientId>
    clientSecret: $oidc.azure.clientSecret
    requestedIDTokenClaims:
      groups:
          essential: true
    allowedAudiences:
      - <ClientId>
      - <ClientIdOfClientCredSp> # If a different service principal is being used for client_credentials authentication

Project Resource Restrictions

In order to control what kind of resources are allowed or blocked by default on the created argo projects you can configure a black and/or white list at both the cluster and namespace levels.

Example

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  projectSettings:
    # Sets the allowed resources at the cluster level
    clusterResourceWhitelist:
      - group: '*'
        kind: '*'
    # Sets the blocked resources at the cluster level
    clusterResourceBlacklist:
      - group: '*'
        kind: '*'
    # Sets the allowed resources at the namespace level
    namespaceResourceWhitelist:
      - group: '*'
        kind: '*'
    # Sets the blocked resources at the namespace level
    namespaceResourceBlacklist:
      - group: '*'
        kind: '*'

For example to block specific resources

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  projectSettings:
    # block cluster roles and bindings
    clusterResourceBlacklist:
      - group: 'rbac.authorization.k8s.io'
        kind: 'ClusterRole'
      - group: 'rbac.authorization.k8s.io'
        kind: 'ClusterRoleBinding'
    # Blocks the creation of cron jobs
    namespaceResourceBlacklist:
      - group: 'batch'
        kind: 'CronJob'

Similarly you can instead allow only a certain set of resources

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  projectSettings:
    clusterResourceBlacklist:
      - group: '*'
        kind: '*'
    # Only the listed resources will be allowed
    namespaceResourceWhitelist:
      - group: 'apps'
        kind: 'Deployment'
      - group: ''
        kind: 'Service'
      - group: 'networking.k8s.io'
        kind: 'Ingress'

Deleting Argo Application and Project Configuration Options

Wait Cycles and Wait Interval

Often deleting the argo application takes time - it is not always immediate. In fact, the request to delete an application is queued in argo. Consequently, an argo project cannot delete if the application is still pending deletion. This may result in abandoned projects because even when you delete an application with cascade set to true, the project does not eventually get deleted. You have an ability to combat this by waiting for the application to delete prior to attempting to delete the project. Currently, our default is to NOT check more than once with no wait time. You can configure the wait interval time (in ms) and the amount of checks separately. These are optional number fields. For example, if you set waitCycles to 5 (indicating the amount of times you would like to check the application's deletion status), and you choose NOT to customize the wait interval, then the total amount of time waiting for the application to be deleted would be 25 seconds (5 (number of checks) * 5000ms (default wait time) = 25 seconds of waiting for application to delete before attempting to delete the project). The hopes is that doing this will allow for the project to be deleted successfully and not leave any project abandonded. However, there is another option to combat this - please look at the Terminate Operation Section below.

waitCycles * waitInterval = total time in ms.

argocd:
  username: ${ARGOCD_USERNAME}
  password: ${ARGOCD_PASSWORD}
  .
  .
  .
  waitInterval: 1000 # time in ms, optional number, default is 5000ms
  waitCycles: 2 # number of checks, optional number, default is to check 1 time with no wait time

Terminate Operation Query Parameter

The delete argo app and project endpoint has a feature to terminate the current operation on the application. There is a query parameter terminateOperation which when set to true will terminate the current application operation before proceeding to delete the application. This is helpful when the application is pending deletion due to a pending operation. Please see https://cd.apps.argoproj.io/swagger-ui#operation/ApplicationService_TerminateOperation for more information.

Permissions

Setting permissions for the Argo CD user account can reduce the scope, but also reduce the functionality of the backend. If you choose to scope the permissions for read-only get actions will work such as the catalog plugin but creating, deleting, and re-syncing applications will not be available. The error handling has been designed to alert the users when the proper permissions are not in place.

Self Signed Certificates

By default the Argo CD Server will generate a self signed certificate. For testing purposes you can use the below to allow http traffic. This should not be used for production. The backend will validate certificates and a self signed certificate will not work properly, which is why for testing enabling http might be preferred.

Once you have installed Argo CD, the deployment of argocd-server can be patched to be insecure using the below command,

kubectl patch deployment argocd-server --type "json" -p '[{"op":"add","path":"/spec/template/spec/containers/0/command/-","value":"--insecure"}]'

Or using Helm you can install Argo CD and be insecure by default.

helm upgrade --install argocd argo/argo-cd \
  --version 3.33.5 \
  --set 'server.extraArgs={--insecure}'

Contributed By American Airlines

---
