@smarter.sh/ui-chat

SmarterChat React.js component for smarter.sh

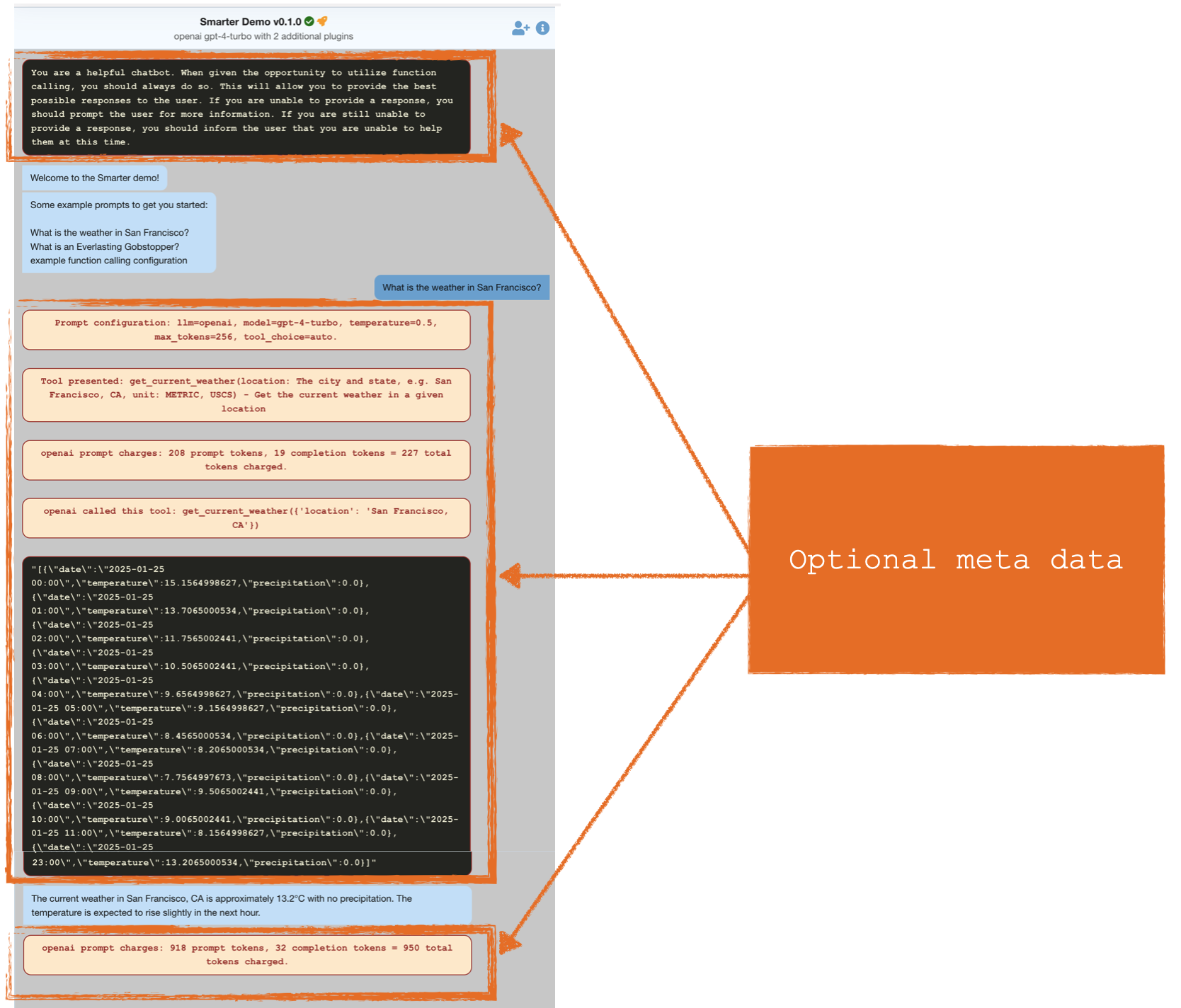

This project contains the source code for the interactive chatbot found in the Smarter web console developer workbench. It integrates natively with Smarter Saas and on-premise installations. You can optionally enable the meta data output behavior found in the Smarter sandbox. See Smarter Technical Overview

This project is also suitable for all front-end cross-platform projects. For example, use this code base to create a react.js run-time for use inside of Wordpress plugins, salesforce.com apps, .net components and Sharepoint add-ins.

Usage

npm install @smarter.sh/ui-chat

import React from "react";
import ReactDOM from "react-dom/client";
import { SmarterChat } from "@smarter.sh/ui-chat";

const rootElement = document.getElementById("root");
const root = ReactDOM.createRoot(rootElement);
const apiUrl = rootElement.getAttribute("smarter-chatbot-api-url");
const toggleMetadata = rootElement.getAttribute("smarter-toggle-metadata") === "true";
const csrfCookieName = rootElement.getAttribute("smarter-csrf-cookie-name") || "csrftoken";
const sessionCookieName = rootElement.getAttribute("smarter-session-cookie-name") || "session_key";
const cookieDomain = rootElement.getAttribute("smarter-cookie-domain") || "platform.smarter.sh";
const authSessionCookieName = rootElement.getAttribute("django-session-cookie-name") || "sessionid";
const csrftoken = rootElement.getAttribute("django-csrftoken");
const debugCookieName = "debug";

root.render(
  <React.StrictMode>
    <SmarterChat
      apiUrl={apiUrl}
      apiKey={apiKey}
      toggleMetadata={toggleMetadata}
      csrfCookieName={csrfCookieName}
      csrftoken={csrftoken}
      debugCookieName={debugCookieName}
      debugCookieExpiration={debugCookieExpiration}
      sessionCookieName={sessionCookieName}
      sessionCookieExpiration={sessionCookieExpiration}
      authSessionCookieName={authSessionCookieName}
      cookieDomain={cookieDomain}
    />
  </React.StrictMode>,
);

Integrate to an existing web page

We integrate this react component to the Smarter developer workbench using this small repo, github.com/smarter-sh/smarter-workbench. This methodology provides a layer of separation between Django and react.js, which keeps things simple. smarter-workbench substantially consists of the following three files:

• main.jsx: a 40-line react.js mini app for configuring this npm component with a Smarter Api url and any initialization settings we choose to include.
• app-loader.js: a small js script that injects the react.js build assets into your DOM, initiating the React boot-up process.
• Makefile: for automating build and release to AWS Cloudfront, where the react ui-chat app is served.

Meanwhile, Django adds a pair of DOM elements like the following example, where app-loader.js launches itself with an "iffe", (Immediately Invoked Function Expression).

<div
  id="smarter-sh-v1-ui-chat-root"
  smarter-chatbot-api-url="https://openai.3141-5926-5359.api.smarter.sh/"
  smarter-toggle-metadata="False"
  style="height: 88vh;"
></div>
<script async="" src="https://cdn.platform.smarter.sh/ui-chat/app-loader.js"></script>

Developers

SmarterChat is created with React leveraging @chatscope/chat-ui-kit-react

Backend integration

See Getting Started with the Smarter Chatbot Api This app interacts with two endpoints from the smarter.sh/v1 chatbot api:

• GET /config/: retrieves a json dict, structured in 4 major sections, with all information required by the react app.
• POST /chat/: send a text completion prompt to the Smarter Api.

Smarter chatbot urls use either of these two naming conventions:

• public: https://<name>.<account_number>.example.com/
• authenticated: https://platform.smarter.sh/chatbots/<name>/. This react component looks for and adds the Smarter platform sessionid cookie value to request headers, if it exists.

Public api url example for a deployed chatbot:

• https://my-chatbot.3141-5926-5359.api.smarter.sh/config/
• https://my-chatbot.3141-5926-5359.api.smarter.sh/chat/

Authenticated api url example for any chatbot in your Smarter account:

• https://platform.smarter.sh/chatbots/my-chatbot/config/
• https://platform.smarter.sh/chatbots/my-chatbot/chat/

Config

A Json dict containing all configuration data for the chatbot. This is downloaded at run-time when the reactapp is initializing. Example: /chatbots/example/config/?session_key=YOUR-SESSION-KEY

See: sample config

Api

A REST Api for sending and receiving chat prompt requests. The url comes from the config dict (above): data.chatbot.url_chatbot. example: http://api.smarter.sh/v1/chatbots/smarter/example/

example http request:

{
    "method": "POST",
    "credentials": "include",
    "mode": "cors",
    "headers": {
        "Accept": "application/json",
        "Content-Type": "application/json",
        "X-CSRFToken": "q9WXqqIhYJMI3ZSBIOE18JMORBMqAHri",
        "Origin": "http://localhost:8000",
        "Cookie": "session_key=a07593ecfaecd24008ca4251096732663ac0213b8cc6bdcce4f4c043276ab0b5; debug=true;"
    },
    "body": "{\"session_key\":\"a07593ecfaecd24008ca4251096732663ac0213b8cc6bdcce4f4c043276ab0b5\",\"messages\":[{\"role\":\"system\",\"content\":\"You are a helpful chatbot."},{\"role\":\"assistant\",\"content\":\"Welcome to the Smarter demo!\"}]}"
}

example http response:

{
  "data": {
    "isBase64Encoded": false,
    "statusCode": 200,
    "headers": {
      "Content-Type": "application/json"
    },
    "body": "{\"id\": \"chatcmpl-AoDpMvoAhf8iSJuEm6pMqkX62HK4G\", \"choices\": [{\"finish_reason\": \"stop\", \"index\": 0, \"logprobs\": null, \"message\": {\"content\": \"Hello! While I'm not your mom, I'm here to help you with any questions or tasks you have. What can I assist you with today?\", \"refusal\": null, \"role\": \"assistant\", \"audio\": null, \"function_call\": null, \"tool_calls\": null}}], \"created\": 1736532916, \"model\": \"gpt-4-turbo-2024-04-09\", \"object\": \"chat.completion\", \"service_tier\": \"default\", \"system_fingerprint\": \"fp_f17929ee92\", \"usage\": {\"completion_tokens\": 33, \"prompt_tokens\": 1122, \"total_tokens\": 1155, \"completion_tokens_details\": {\"accepted_prediction_tokens\": 0, \"audio_tokens\": 0, \"reasoning_tokens\": 0, \"rejected_prediction_tokens\": 0}, \"prompt_tokens_details\": {\"audio_tokens\": 0, \"cached_tokens\": 0}}, \"metadata\": {\"tool_calls\": null, \"model\": \"gpt-4-turbo\", \"temperature\": 0.5, \"max_tokens\": 256, \"input_text\": \"hi mom\"}}"
  },
  "api": "smarter.sh/v1",
  "thing": "Chatbot",
  "metadata": {
    "command": "chat"
  }
}

Contributor Reference

Getting Started

• make: prints a full menu of commands to the console.
• make init: Setup your environment for first time use. sets up your Node environment for you. initializes pre-commit, which you need to run prior to creating pull requests.
• make run: Run the dev server locally
• make build: Build the react.js project. saves vite.js output to ./build in the root of this project.
• make release: Deploy the react.js project. REQUIRES awscli + keypair with sufficient permissions. Publishes the contents of the ./build folder to an AWS S3 bucket served by the host defined by the value of CDN_HOST_BASE_URL located in shared/constant.js. For example, the react app for the Smarter workbench is initialized and served from these endpoints: a. index.html: the react app build artifacts, and b. app-loader.js: a script to insert the react app build artifacts into the DOM.

Architecture

• Vite
• React
• Chat UI Kit React

Contributing

We welcome contributions! There are a variety of ways for you to get involved, regardless of your background. In addition to Pull requests, this project would benefit from contributors focused on documentation and how-to video content creation, testing, community engagement, and stewards to help us to ensure that we comply with evolving standards for the ethical use of AI.

You can also contact Lawrence McDaniel directly.
