@smartstream-tv/pulumi-aws-toolbox

Pulumi AWS Toolbox

The Pulumi AWS Toolbox is an opinionated library containing components to deploy common application to the AWS cloud.

It's mostly useful for projects that follow these design ideas:

• being as serverless as possible, with pay per request AWS resources while avoiding resources that incur a fixed cost per hour
• websites that are mostly static using S3 and CloudFront
• backends implemented with AWS Lambda

Setup

Install with

npm i @smartstream-tv/pulumi-aws-toolbox

Import it into your code with

import * as pat from "@smartstream-tv/pulumi-aws-toolbox";

Components

Vpc

The Vpc component is a core component that provides networking functionality. It's needed to run things like EC2 instances, ECS tasks, RDS databases, and AWS Lambda functions. It's an opionionated component focused on the use of IPv6 instead of IPv4 (no NAT gateways provided). It doesn't try to support everything and doesn't provide many configuration options.

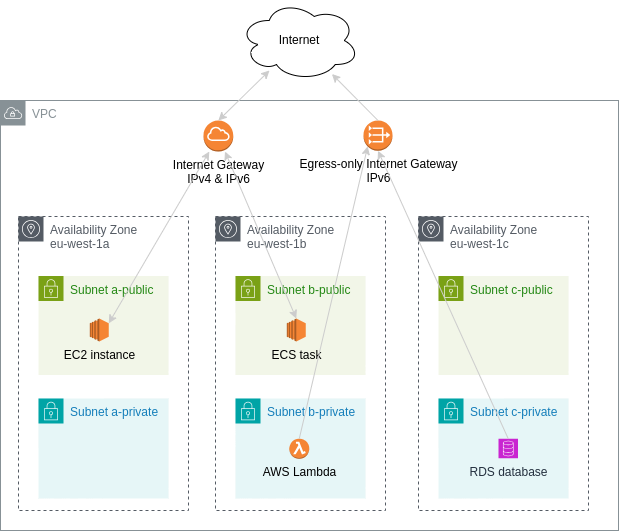

Architecture:

It sets up subnets for three availability zones (= data centers). This allows to build applications with very high availability.

Resources in a public subnet can be reached from and can communicate to the internet via IPv4 and IPv6.

• For IPv4 resources need to have a public IPv4 address.
• AWS Lambda does not support public IPv4 addresses, you would need NAT gateways for this, which we don't want to use due to their cost.

Resources in a private subnet can communicate to the internet only via IPv6 and cannot be reached from the internet at all.

• By default, you should place resources that don't need to be reached from the internet here.

Components:

• Jumphost: Creates a jumphost EC2 instance.
• StdSecurityGroup: A simple security group for many standard cases.
• Vpc: the VPC component itself.

Database

Components:

• Ec2PostgresqlDatabase: Creates a self-hosted postgresql database on EC2.

Lambda

Components:

• SimpleNodeLambda: Creates a Nodejs AWS Lambda with useful defaults for small & simple tasks.

SES

Components:

• SesProxyMailer: Creates a AWS Lambda to send email using SES using IPv6 and/or from another account.

Website

Components:

• CloudfrontLogBucket: Creates a S3 bucket to store CloudFront standard logs.
• SingleAssetBucket: Creates a S3 bucket where single file assets can be stored for delivery by a CloudFront distribution.
• StaticWebsite: Opinionated component for hosting a website. See below for a detailed description.
• ViewerRequestFunction/ViewerResponseFunction: Creates a CloudFront function that processes the request/response through a chain of handlers.

Static website

The StaticWebsite component creates a CloudFront distribution and a number of supporting resources to create a mostly static website. It's an opinionated component that tries to solve the common cases of website hosting - but it may not be suitable for all cases.

Resources can be integrated from these sources (see "routes" argument):

• S3: for static assets
• Lambda: to integrate dynamic content using a Lambda function
• SingleAsset: a useful utility to serve a single static file e.g. a environment specific config at /config.json

Moreover, the following things happen under the hood:

• Automatically handles URL rewrites, so that when the user loads example.com/product, it will internally load product/index.html from S3.
• HTTPS handled by CloudFront using a free HTTPS certificate from AWS.
• DNS records are created in Route53.
• Efficient caching for S3. The cache-control response header is set automatically to force the browser to re-validate resources before it can use them. If you have assets that never change, configure them by setting "immutable" for a given S3 route.
• HTTP basic auth can be enabled to protect the website, e.g. for dev.
• Access logs are stored in S3.
• Automatically sets common HTTP security headers for responses.

Primarily, assets are loaded from S3 (specified by an S3Location). The bucket must be provided by you, for example, using the S3ArtifactStore component. The bucket must be provided by you to cater for cases where the bucket should be shared by several dev stacks and must therefore already exist during the CI build phase (and to support additional settings e.g. cross-account access from prod).

Example:

// Create a S3 bucket where the website assets are stored
const artifactStore = new pat.build.S3ArtifactStore(`my-artifact`, {
    artifactName: "website",
});

// Create the CloudFront distribution
new pat.website.StaticWebsite(`my-website`, {
    acmCertificateArn_usEast1: "arn:aws:acm:us-east-1:111111111111:certificate/xxxxxxxxx",
    hostedZoneId: "Z11111111111111111111",
    routes: [{
        type: RouteType.S3,
        pathPattern: "/",
        s3Location: artifactStore.getArtifactVersion("1.0"),
    }],
});

// Allow CloudFront to read the assets from S3
artifactStore.createBucketPolicy();

Afterwards, upload your website assets into s3://my-artifact-xyz/website/1.0 and you're done.

Build

Components:

• S3ArtifactStore: Creates a S3 bucket where build artifacts can be stored.

Scripts

pulumi-aws-login

By convention we're using Pulumi's AWS S3 backend, with a bucket named "pulumi-state-{AWS_REGION}-{AWS_ACCOUNT_ID}". You can configure Pulumi to use this bucket by running

npx pulumi-aws-login

This will configure Pulumi to use the bucket of your current AWS account. The bucket must already exist.
