Geoditor

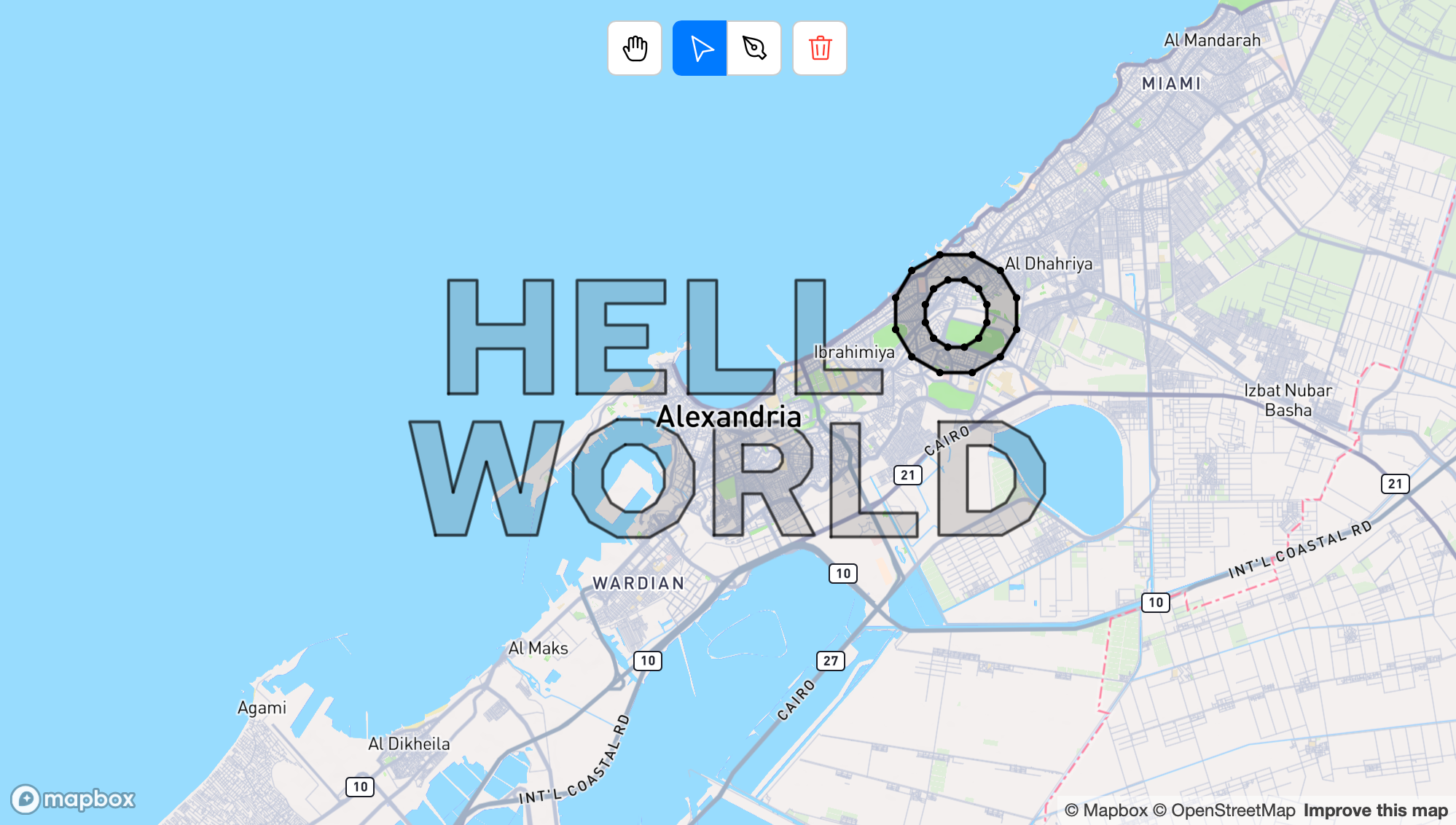

Map GeoJSON geometry editor. See Demo

Supported features:

• LineString
• Polygon
• MultiLineString
• MultiPolygon
• GeometryCollection coming someday.

Installing

npm install geoditor

yarn add geoditor

Initialising

Geoditor is initialising with 2 types of modules.

1. Controller (required) to render features onto map. Provides API between Geoditor core and map implementation. Currently only MapBox is supported.
2. Tools (optional) to edit data. If no tools is passed, default set will be used.

import { Geoditor, PenTool, MoveTool } from "geoditor";

const geoditor = new Geoditor({
  controller: {...},
  tools: {
    pen: new PenTool(),
    move: new MoveTool(),
    hand: new HandTool(),
    delete: new DeleteTool(),
  }
});

Any tool can be reused under different names with different settings (if supported). For example, multiple instances of Pen tool to create only lineal or polygonal geometries tools:

tools: {
  line: new PenTool({ types: ["LineString", "MultiLineString"]}),
  polygon: new PenTool({ types: ["Polygon", "MultiPolygon"] }),
}

Using with MapBox

import { Geoditor, MapboxController, PenTool, MoveTool } from "geoditor";
import { MapBox } from "mapbox-gl";

const mapbox = new MapBox({
  /* options */
  ...
});

const geoditor = new Geoditor({
  controller: new MapboxController(mapbox),
  ...
});

Options

All options and optional. Use it only if you want to change rendering style or interactivity. Both config and layerStyles are used for visual representation of the layers, and area is used to define areas of interactivity.

More info

type Options = {
    config?: LayerConfig;
    layerStyles?: Omit<mapboxgl.Layer, "id">[];
    area?: {
        points?: number | false;
        lines?: number | false;
        planes?: false;
    };
}

layerStyles

If layerStyles is provided config will be ignored. Any layer type can be used but:

• FillLayer types are used to render planes
• LineLayer types are used to render lines.
• Every other layer will be used for rendering points.

Use the following feature-states to distinct features in different states: disabled, hover or active

config

Config is used to generate mapbox.Layers for planes, lines and points separately.

type LayerConfig = {
    points: {
        type: mapboxgl.Layer["type"];
        paint: {
            // Feature states representation
            default: mapboxgl.AnyPaint,
            /** Keep in mind that any paint properties key
             * missing in "default" will be ignored */
            hover: mapboxgl.AnyPaint,
            active: mapboxgl.AnyPaint,
            disabled: mapboxgl.AnyPaint
        }
        layout?: mapboxgl.AnyLayout;
    },
    // lines and planes configs are the same
    lines: {...},
    planes: {...}
}

See example

Getters and Setters

.data

You can access or set data at any given moment. LineString, Polygon, MultiLineString, and MultiPolygon are supported. Rest won't be deleted or changed in any way but will be ignored in render.

// Get features
const features = geoditor.data;

// Set features
geoditor.data = [
  {
    type: "Feature",
    geometry: {
      type: "LineString",
      coordinates: [[35.00, 50.00], [35.00, 51.00]],
    },
  },
]

.selected

Access or set selected features indices.

// Get selection
const selected: number[] = geoditor.selected;

// Set single/multiple selection
geoditor.selected = [0];
geoditor.selected = [0, 1, 2];

// Select feature's shape
geoditor.selected = [[0]]
geoditor.selected = [[1, 0]]

// Remove selection
geoditor.selected = [];

Events

.on("load")

Fires when Controller is initialized and ready. You can start working with Geoditor.

geoditor.on("load", () => {
  /** EXAMPLE:
      Starts pen tool. Feature properties can be passed as argument. */
  geoditor.tools.pen({ color: "red" });
});

.on("change")

Fires on data change. Array of GeoJSON features is passed into listener. If you had provided some data to Geoditor before all feature properties will be kept.

geoditor.on("change", (data: GeoJSON.Feature[]) => {
  // data === geoditor.data
  console.log(data, geoditor.data);

  /** EXAMPLE:
      Switch to "move" tool after drawing */
  if (geoditor.tool === "pen") geoditor.tools.move();
});

.on("select")

Fires on feature selection change. Array of selected indices is passed into listener.

geoditor.on("select", (selected: number[]) => {
  /**
    selected !== geoditor.selected
    selected: number[] includes only indices of selected features
    geoditor.selected: (number | number[])[] returns selected shapes of features (if any)
   */
  console.log(selected, geoditor.selected);
});

.on("tool")

Fires on tool switch. Current tool name is passed into listener.

geoditor.on("tool", (tool?: string) => {
  /**
    tool === geoditor.tool
   */
  console.log(tool, geoditor.tool);
});

.on("render")

Fires every render. Can be used for simultaneous features update in a different source/map.

import * as mapboxgl from "mapbox-gl";

geoditor.on("render", (data: GeoJSON.Feature[]) => {
    // data !== geoditor.data
    console.log(data, geoditor.data);

    // EXAMPLE:
    mapboxgl.getSource("some-source")?.setData(data)
});

Tools Initialisation

Pen Tool

Draws geometry. Different tools can be initialised with PenTool using different options:

Property	Description	Type	Default
types	Types of created features	LineString | Polygon | MultiLineString | MultiPolygon | Array<"LineString" | "Polygon" | "MultiLineString" | "MultiPolygon">	["LineString", "Polygon", "MultiLineString", "MultiPolygon"]
append	Extends line geometry and converts single geometry to multi if corresponding types are provided.	boolean | shift | alt | ctrl | meta	true
subtract	Subtract shapes from polygonal features.	boolean | shift | alt | ctrl | meta	true
create	Add new features.	boolean | shift | alt | ctrl | meta	true
filter	Filter predicate to exclude specific geometries from interaction and render	(shape: Shape) => boolean type Shape = ( { type: "Point"; coordinates: number[] } | { type: "LineString"; coordinates: number[][] } | { type: "Polygon"; coordinates: number[][][] } ) & ( { nesting: number[], props: mapboxgl.Feature["props"] } )	() => true

Example

const PolygonTool = new PenTool({
  types: ["Polygon", "MultiPolygon"],
  append: "shift",
  subtract: "alt",
});

const AppendTool = new PenTool({
  create: false,
  subtract: false,
});

Move Tool

Moves and modifies geometry. You can provide key modifier to enable editing point mode. If no modifier is provided this mode enables by double click.

Property	Description	Type	Default
modify	Sets modifier key to activate point editing mode. If true second click enables this mode	boolean | dblclick | alt | ctrl | meta	true
filter	Filter predicate to exclude specific geometries from interaction and render	(shape: Shape) => boolean type Shape = ( { type: "Point"; coordinates: number[] } | { type: "LineString"; coordinates: number[][] } | { type: "Polygon"; coordinates: number[][][] } ) & ( { nesting: number[], props: mapboxgl.Feature["props"] } )	() => true

Example

const ModifyTool = new MoveTool({
  modify: "dblclick",
});

const MoveOnlyTool = new MoveTool({
  modify: false,
});
