node-red-contrib-line-messaging-api

Node-RED nodes for LINE Messaging API integration.
Build LINE Bots easily with Node-RED's visual programming interface.

About this project

This package provides Node-RED nodes for integrating with LINE Messaging API, allowing you to create LINE Bots using Node-RED's visual flow editor. Create webhooks, send messages, and handle LINE Bot events with simple drag-and-drop nodes.

Install

Run the following command in the root directory of your Node-RED install:

npm install node-red-contrib-line-messaging-api

Or using Node-RED's Palette Manager:

Go to the Node-RED menu
Select "Manage palette"
Click the "Install" tab
Search for "line-messaging-api"
Click install

Configuration

LINE Bot Config Node

The configuration node stores your LINE Bot credentials (Channel Secret and Channel Access Token). This background node isn't displayed in the editor but is accessible through the settings UI of Reply and Push nodes.

Created LINE Bot configurations can be shared across multiple Reply and Push nodes.

Available APIs and Usage

Webhook & Reply Message

Place a Webhook node and double-click to configure it. Set the /path and register the Webhook URL (your hostname + path) in the LINE Developers console for your Messaging API.
Place a ReplyMessage node and configure the channel secret and access token.
Connect the Webhook node to the ReplyMessage node to create an echo bot that responds to LINE messages.
Process msg.payload between the Webhook and ReplyMessage nodes to send various message types. Use plain text strings for text messages, or LINE-defined message objects for rich messages.

Push Message

Send push messages by setting text in msg.payload to send text messages.

Text Message v2 with User Mentions

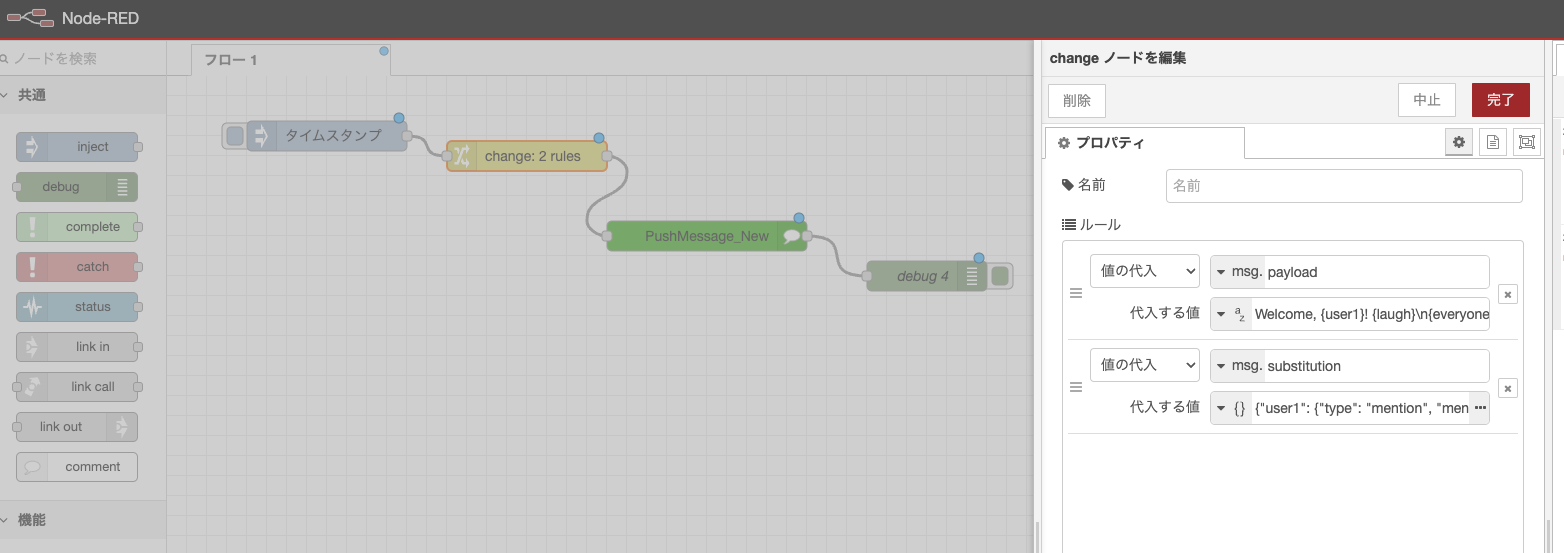

Send push messages with user mentions using Text Message v2 by setting msg.payload with {placeholder} text and configuring msg.substitution.

msg.payload: Welcome, {user1}! {laugh}\n{everyone} There is a newcomer!
msg.substitution:

{"user1": {"type": "mention", "mentionee": {"type": "user", "userId": "Uxxxxxxxxxxxx"}},"laugh": {"type": "emoji","productId": "670e0cce840a8236ddd4ee4c","emojiId": "002"},"everyone": {"type": "mention","mentionee": {"type": "all"}}}

Custom Messages

Send custom messages by setting arrays or message objects in msg.payload.

msg.payload = [
    {
        type: "text",
        text: "hogehoge",
    },
    {
        type: "image",
        originalContentUrl: 'https://i.gyazo.com/e772c3b48a07716226f7184d7f417cda.png',
        previewImageUrl: 'https://i.gyazo.com/e772c3b48a07716226f7184d7f417cda.png'
    }
]

return msg;

Broadcast Message

Send messages to all bot friends.

Loading

Display loading indicators to users.

https://developers.line.biz/en/reference/messaging-api/#display-a-loading-indicator

Get Profile

Retrieve user profile information. https://developers.line.biz/en/reference/messaging-api/#get-profile

Get Bot Info

Retrieve bot information. https://developers.line.biz/en/reference/messaging-api/#get-bot-info

Node Types

Node Type	Description
Webhook	Receives webhooks from LINE platform
Reply Message	Sends reply messages using reply tokens
Push Message	Sends push messages to specific users
Broadcast Message	Sends messages to all bot friends
Loading	Displays loading indicators
Get Profile	Retrieves user profile information
Get Bot Info	Retrieves bot information
Limit	Checks message quota limits
LINE Bot Config	Stores bot credentials (background node)

Browser Compatibility and Requirements

HTTPS Required: For production webhook endpoints
LINE Developers Account: Required for creating LINE Bots
Node-RED: Compatible with Node-RED v1.0+
Dependencies: @line/bot-sdk, express, body-parser, cors

Release Notes

2024/12/27: Added Loading, getProfile, and config nodes
2023/12/11: Added Notify_new with sticker and image support
2021/8/1: Reply Message now supports images (thanks @ukkz)
2020/12/17: Added Broadcast Message support, Reply Message supports Flex Messages (thanks @gaomar)
2019/2/13: Added PUSH Message and LINE Notify support
2018/10/11: Initial release with basic reply functionality

Contributing & License

Pull requests and bug reports are welcome.
This project is licensed under the Apache 2.0 license.

Created and maintained by n0bisuke.
