sample-editor-view

WebAudio SampleEditorView

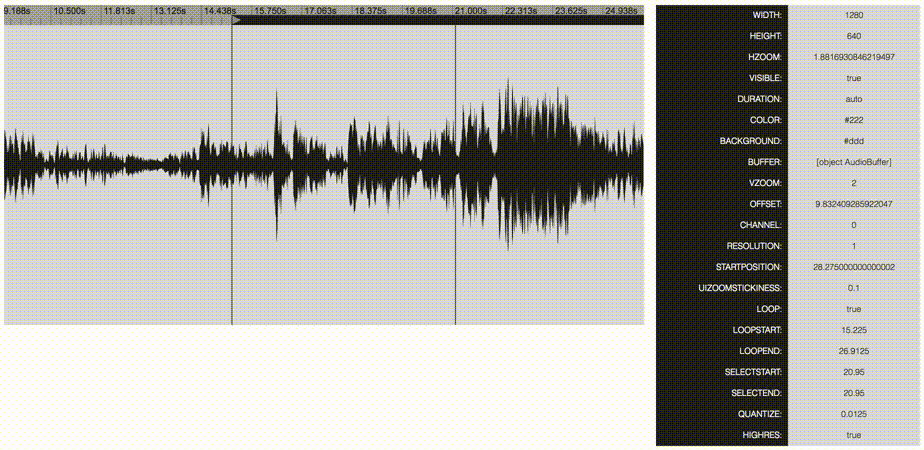

Audio / Waveform UI for displaying WebAudio AudioBuffers with zoom, select and looping markers interaction. Much like what you would find in a DAW.

Warning

This repo is in it's early stage. May not be appropriate for production.

Try It

Live Demo

Install

npm i -D sample-editor-view or yarn add -D sample-editor-view

Features

• Adjustable detail - Fast rendering when precision is not important
• No external dependencies
• Should work wherever WebAudio works
• Canvas based with customizable rendering size (for retina)
• Modular approach. Easy to use just the Waveform for example
• Quantize selection and looping points to a time interval

Alternatives

• https://github.com/bbc/waveform-data.js Probably better performance-wise, but much bigger in scope. Also missing some more DAW-like features I required.

Usage

Create / Init:

let editor = new SampleEditorView({...})

// ... load / create buffer

editor.buffer = buffer

options

All options can be sent to the constructor in an object, or updated / read later with: editor.props.[propName] = x. Setting a property will also cause a rerendering of the updated part.

Property	Default	Description
hZoom	1	Horizontal zoom level. In ratio where 1 shows the full duration and 2 show half the duration.
vZoom	2	Vertical zoom level. A multiplier used when drawing the hight of the waveform.
offset	0	Offset in seconds from where to start reading from the buffer.
background	'#ddd'	Background color.
color	'#222'	Foreground color (text and waveform).
selectBackground	'#222'	Background select color.
selectColor	'#ddd'	Foreground select color (waveform).
width	640	Width in pixels. Multiply with window.devicePixelRatio and adjust CSS to adopt to retina / high-res.
height	320	Height in pixels. Multiply with window.devicePixelRatio and adjust CSS to adopt to retina / high-res.
channel	0	What buffer-channel to read from.
resolution	1	Level of detail, should be kept between 1-N, where 1 means to draw every pixel and N every N:th pixel
startPosition	0	Position of start marker
uiZoomStickiness	0.1	When panning / zooming, this is used to prevent accidental zooming (when panning).
duration	'auto'	What duration to use to determine max pan / offset etc. 'auto' means using the buffer duration.
loop	true	Show or hide loop markers.
loopStart	0	Start position for loop markers, in seconds.
loopEnd	1	End position for loop markers, in seconds.
selectStart	0	Start position for selection, in seconds.
selectEnd	0	End position for selection, in seconds.
quantize	0.0125	Snapping or quantize duration in seconds. 0.125 would snap to 1/16th note in 120 bpm.
buffer	null	What AudioBuffer to read from.

Developing

• Run any dev server or the file system
• yarn build or npm run build - produces production version of SampleEditorView under the dist folder
• yarn dev or npm run dev - produces development version SampleEditorView and runs a watcher
• yarn test or npm run test - runs the to-do-tests :)
• yarn test:watch or npm run test:watch - same as above but in a watch mode

License

• See LICENSE
